FUNPACK
Main Applications :
Telecommunications, Portable equipment,Portable Devices, Illuminate Devices, Other toys, such as: cellular phone,
interphone, cordless phone,digital camera, portable DVD, portable television, GPS, PDA, PMP, PSP, portable medical
device, instrument and apparatus,miner lamp, searchlight, lighting devices, emergency light., mc models,
power tools. Widely applied in POS system, Solar supply system, electric tools, household,appliance and emergent
device area, electric bikes, Laptop, camcorder,equipment, IR telescope, Medical devices.Product Parameters:
Item | Specification |

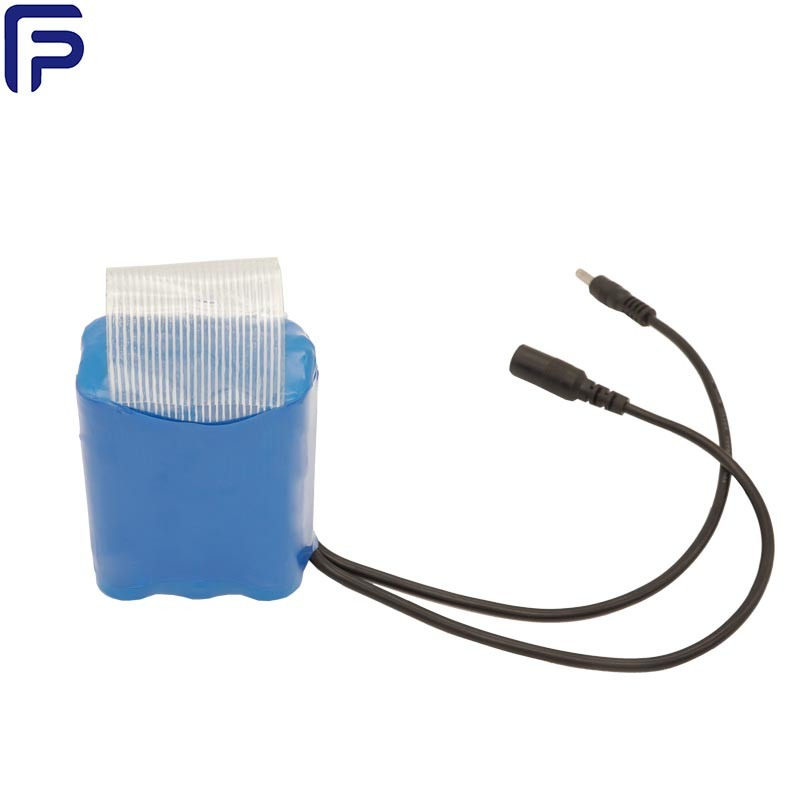

Model Name | FP-18650-3S2P |
Pack Configuration | 3 Series 2 parallel (3S2P) |
Standard Environmental Test Conditions | |
1):Unless otherwise specified, all tests stated in this Product Specification are conducted at below conditions: | |
Temperature: 25 ± 3°C ("Temperature Condition") | |
Humidity: 65 ± 20% RH ("Humidity Condition") | |
2):Numeric criteria annotated by "*" means such criteria are only applicable to fresh unused Product within 30 days from manufacture. Products either have been used or stored for a period longer than 30 days by Customer and/or its customer may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not constitute non conformance of specification | |
*Minimal Capacity | 4900mAh |
Typical Capacity | 5000mAh |
*Typical Voltage | (11.1*3S2P) V |
Charge Cutoff Voltage | (*3S2P) V |
Voltage at End of Discharging | (9.0*3S2P)V |
Standard Charging Current | 1A |
Standard Charging Time | ≥3h |
Maximum charge current | 2.5A |
Charge | <-10ºC: Charging prohibited |
-10ºC to 0ºC: ≤0.1Cmin CC to 12.6V then CV to 0.02Cmin | |
0ºC to 15ºC: ≤0.2Cmin CC to 12.6V then CV to 0.02Cmin | |
15ºC to 45ºC: ≤0.5Cmin CC to 12.6 then CV to 0.02Cmin | |
45ºC to 60ºC: ≤0.5Cmin CC to 12.3V then CV to 0.02Cmin | |
Standard Discharge | 0.2C: Standard discharge means discharging at 160mA(0.2Cmin) down to 9.0V in 23±2ºC |
Standard Discharging Time | ≥3h: 0.5Cmin Max discharge to 9.0V time |
Maximum discharge current | 5A |
Discharge | -30ºC to -20ºC: ≤0.1Cmin discharge to 9.0V |
-20ºC to 60ºC: ≤0.2Cmin max discharge to 9.0V | |
Storage Temperature | -20 to 45ºC: 1month recovery≥85%,thickness swelling ≤3% |
-20 to 35ºC: 6months recovery≥85%,thickness swell ing ≤2% | |
-20 to 25ºC: 12months recovery≥85%,thickness swell ing ≤1% | |
*Initial resistance | ≤ 120mΩ |
Allowable Humidity Range | 65±20% |
*Pack Voltage (V) (as of shipment, Alternative) | 10.8~11.4V |
*RT Cycle life(25°C±3°C) | Charge battery with standard charge method and discharge battery with 0.2Cmin discharging. |
Pack Weight (Approx) | 310±5g(Ref) |
Size | max69*56*37mm |
Product Description:
wide capacity scope
good recycle life
good safety performance,FUNPACK polymer Li-ion battery adopts polymer outer film packing. Packing film will leak
automatically when the battery reaches , to avoid explosion.
FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
