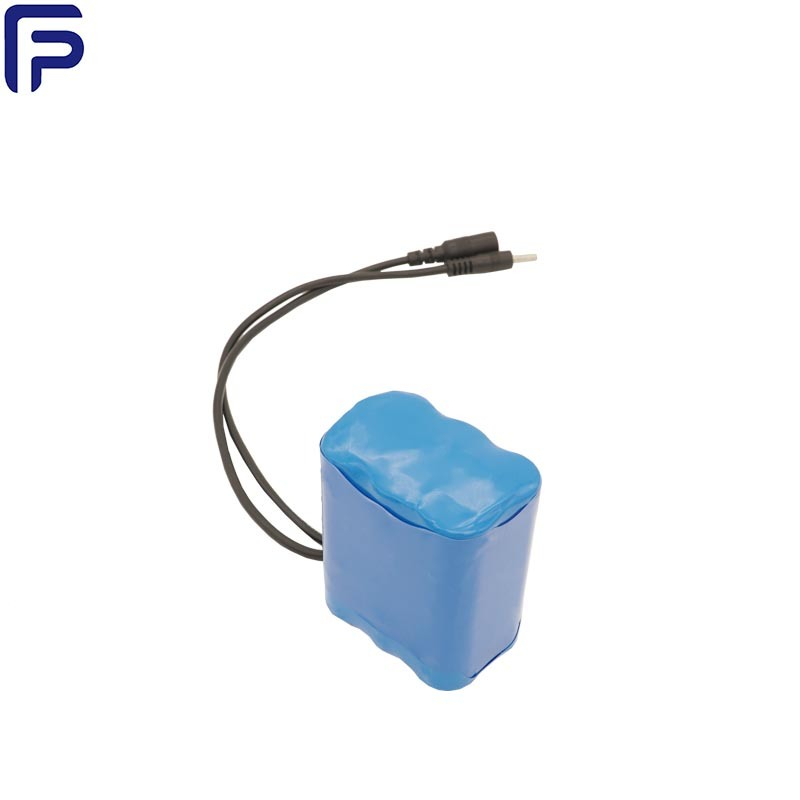

3s2p 5000mAh 11.1V
FUNPACK
Main Applications :
Product Parameters:
Item | Specification |
Model Name | FP-18650-3S2P |
Pack Configuration | 3 Series 2 parallel (3S2P) |
Standard Environmental Test Conditions | |
1):Unless otherwise specified, all tests stated in this Product Specification are conducted at below conditions: | |
Temperature: 25 ± 3°C ("Temperature Condition") | |
Humidity: 65 ± 20% RH ("Humidity Condition") | |
2):Numeric criteria annotated by "*" means such criteria are only applicable to fresh unused Product within 30 days from manufacture. Products either have been used or stored for a period longer than 30 days by Customer and/or its customer may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not constitute non conformance of specification | |
*Minimal Capacity | 4900mAh |
Typical Capacity | 5000mAh |
*Typical Voltage | (11.1*3S2P) V |
Charge Cutoff Voltage | (*3S2P) V |
Voltage at End of Discharging | (9.0*3S2P)V |
Standard Charging Current | 1A |
Standard Charging Time | ≥3h |
Maximum charge current | 2.5A |
Charge | <-10ºC: Charging prohibited |
-10ºC to 0ºC: ≤0.1Cmin CC to 12.6V then CV to 0.02Cmin | |
0ºC to 15ºC: ≤0.2Cmin CC to 12.6V then CV to 0.02Cmin | |
15ºC to 45ºC: ≤0.5Cmin CC to 12.6 then CV to 0.02Cmin | |
45ºC to 60ºC: ≤0.5Cmin CC to 12.3V then CV to 0.02Cmin | |
Standard Discharge | 0.2C: Standard discharge means discharging at 160mA(0.2Cmin) down to 9.0V in 23±2ºC |
Standard Discharging Time | ≥3h: 0.5Cmin Max discharge to 9.0V time |
Maximum discharge current | 5A |
Discharge | -30ºC to -20ºC: ≤0.1Cmin discharge to 9.0V |
-20ºC to 60ºC: ≤0.2Cmin max discharge to 9.0V | |
Storage Temperature | -20 to 45ºC: 1month recovery≥85%,thickness swelling ≤3% |
-20 to 35ºC: 6months recovery≥85%,thickness swell ing ≤2% | |
-20 to 25ºC: 12months recovery≥85%,thickness swell ing ≤1% | |
*Initial resistance | ≤ 120mΩ |
Allowable Humidity Range | 65±20% |
*Pack Voltage (V) (as of shipment, Alternative) | 10.8~11.4V |
*RT Cycle life(25°C±3°C) | Charge battery with standard charge method and discharge battery with 0.2Cmin discharging. |
Pack Weight (Approx) | 310±5g(Ref) |
Size | max69*56*37mm |
Product Description:
wide capacity scope
good recycle life
good safety performance,FUNPACK polymer Li-ion battery adopts polymer outer film packing. Packing film will leak
automatically when the battery reaches , to avoid explosion.
