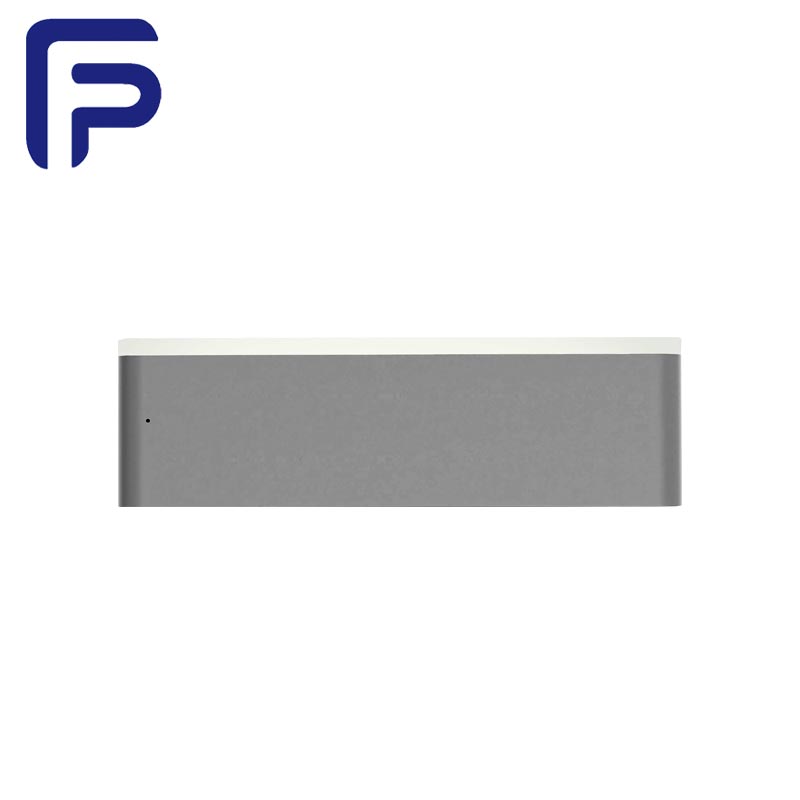

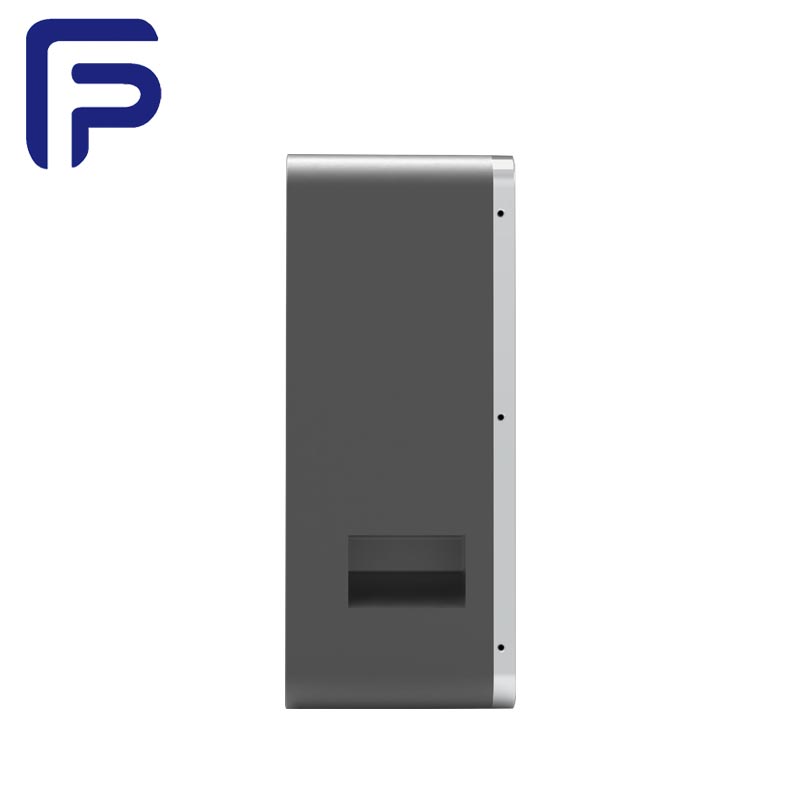

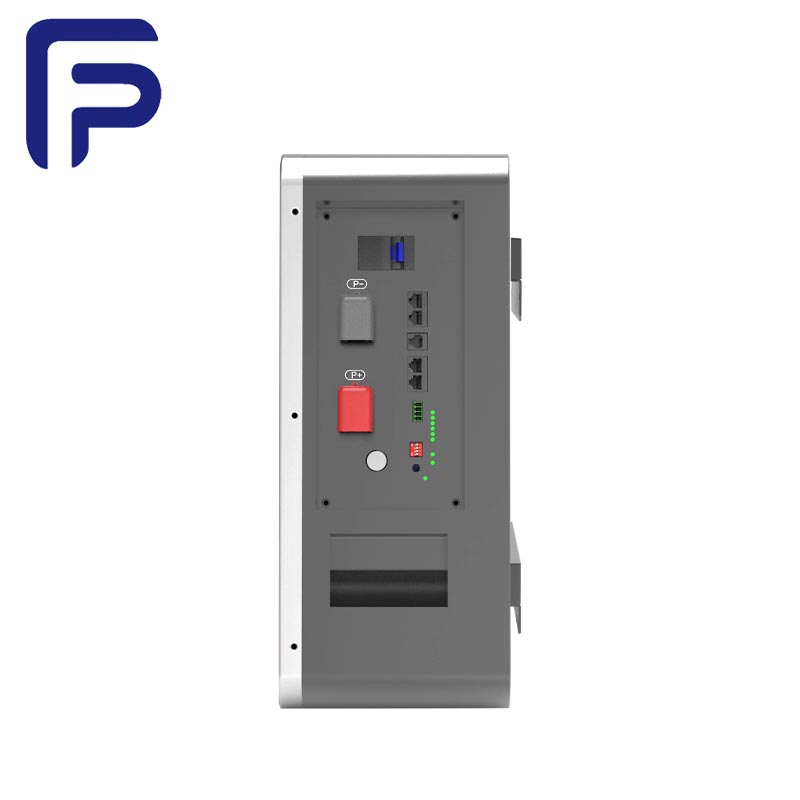

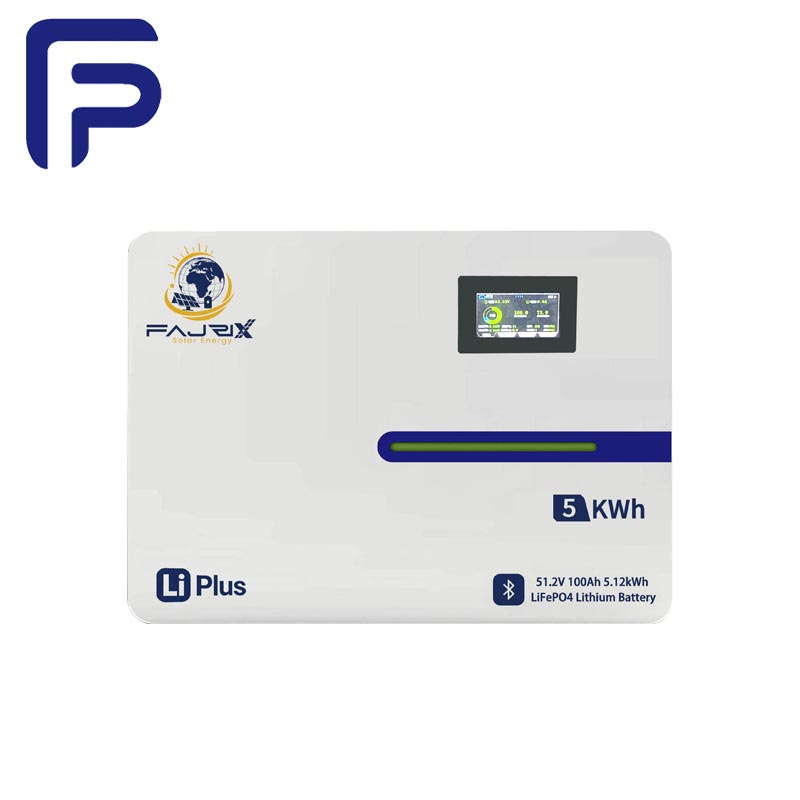

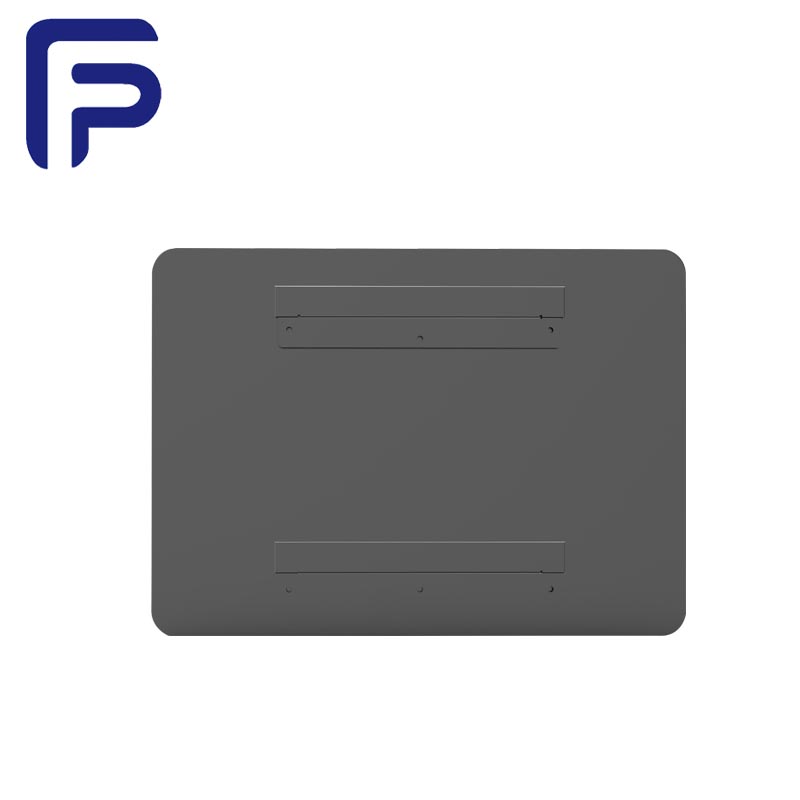

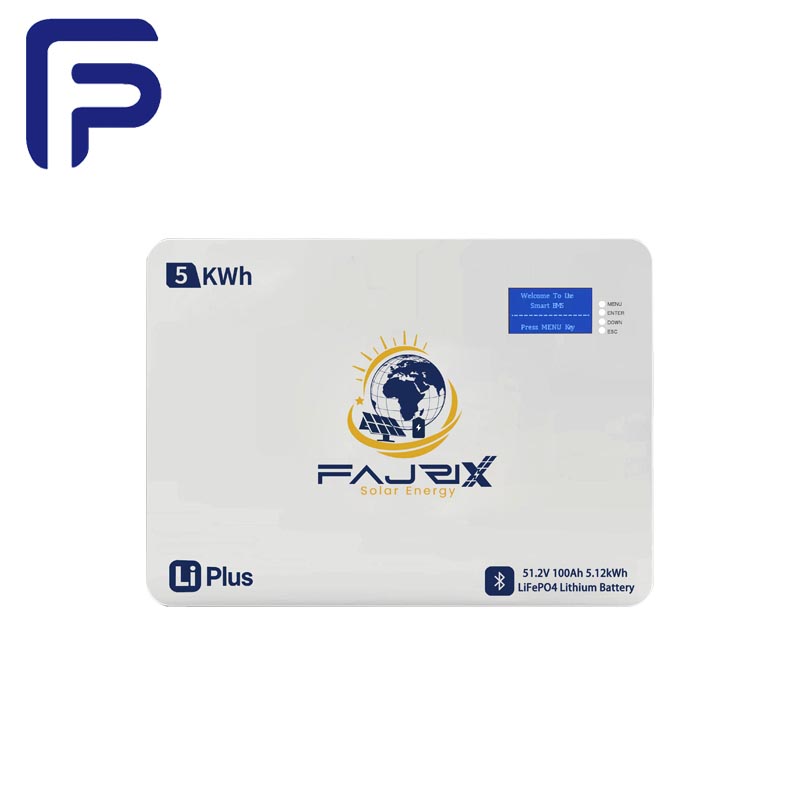

51.2C 100AH
FUNPACK
Model | LIPLUSX-S5A | LIPLUSX-S5B |
Ratevaltage(Vc) | 51.2 | 51.2 |
Cell combination | 16s1p | 16s1p |
Rate capacity(AH) | 100 | 100 |
Energy storage(Kwh) | 5.12 | 5.12 |
Cycle life | 25±2°C，0.5C/0.5C，EOL70%≥8000 | |
Charge/Discharge Standard | ||
Charge voltage(V) | 56 | 56 |
Max.charge current(A) | 100 | 100 |
Max.discharge current(A) | 100 | 100 |
Discharge cut-off voltage(VDC) | 43.2 | 43.2 |
Charge cut-off voltage(VDC) | 58.4 | 58.4 |
Enviornment | ||
Charge temperature | 0°C ~ 50°C@60 ± 25% Relative Humidity | |
Discharge temperature | -20°C ~ 50°C@60 ± 25% Relative Humidity | |
Storage temperature | -20°C ~ 50°C@60 ± 25% Relative Humidity | |
Mechanical | ||
IP class | IP32 | IP32 |
screen | 4.3 inch touch screen | 3.2 inch key button screen |
Warranty | 5Years | 5Years |
Product dimension L*W*H(mm) | 611*183*444 | 611*183*444 |
Net weight(kg) | 48±1kg | 48±1kg |
Communication | ||
Protocol(Optional) | CAN /485/R232 | |
Certificates | ||
Pack | UN38.3, MSDS, | |
Cell | UN38.3, MSDS, IEC62619, CE, UL1973 | |
Q1. Are you factory?
A: Yes, we are professional manufacturer for polymer batteries since 2017.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipment.
Q3. Can I get the pre-production sample
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q4. Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.
Q5. Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are in urgent need of a price, please call us or let us know via Whatsapp or email and we will give priority to your inquiry.
