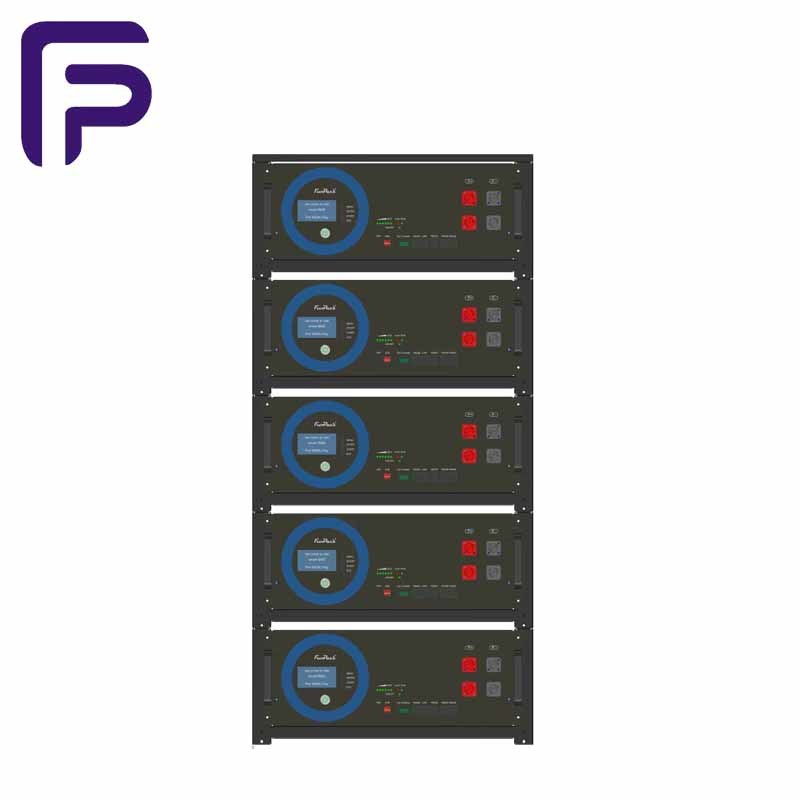

51.2V 100ah-500ah Home Power Storage System LiFePO4 Household Rack Mounted

Model FP05-4U FP05-4U FP05-4U FP05-4U FP05-4U
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Energy 6.912KWh 13.824KWh 20.736KWh 27.648KWh 34.56KWh
Capacity 100AH 200AH 300AH 400AH 500AH
Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V
Working Voltage Range 40~58.4V 40~58.4V 40~58.4V 40~58.4V 40~58.4V
Max charge current 100A 100A 100A 100A 100A
Max discharge current 100A 100A 100A 100A 100A
Standard charging current 100A 100A 100A 100A 100A
Standard discharge current 100A 100A 100A 100A 100A
DOD 100% 100% 100% 100% 100%
Max string parallel number 15 15 15 15 15
Lifecycle 6000 times 6000 times 6000 times 6000 times 6000 times
Operating Temperature Charge:0~60ºCDischarge:-10~60ºC
Operation Humidity 5~95% 5~95% 5~95% 5~95% 5~95%
Nominal Operation Altitude <3000m <3000m <3000m <3000m <3000m
IP Rating IP65 IP65 IP65 IP65 IP65
Warranty period 5 5 5 5 5
Communication MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383
Certification / / / / /
Net weight ≈50KG ≈50KG ≈50KG ≈50KG ≈50KG
Dimension(L*W*H) 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm
Rack size(L*W*H) 519*409*1087mm 574*482.6*177mm*2 574*482.6*177mm*3 574*482.6*177mm*4 574*482.6*177mm*5
Availability:
Quantity:
  • FH-LP05-4U

  • FUNPACK

Product Description

Product Description

Most popular LiFePO4 lithium ion battery 51.2v 100ah 200ah to 500ah rack mounted  for solar energy storage systems

LifePO4 batteries and its benefits:

NLP LifePO4 battery is superior compared to lead acid batteries in following features

1.0 Degree charging cut off, designed with full protection.

2.1/2 Lower weight, high energy density.

3.1 Hour Fast Charging

4.Longer life, up to 4000 cycles.

5. 5 Years quality warranty.

6. 100% Power discharge without harm battery




Technical Parameters
Model FP05-4U FP05-4U FP05-4U FP05-4U FP05-4U
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Energy 6.912KWh 13.824KWh 20.736KWh 27.648KWh 34.56KWh
Capacity 100AH 200AH 300AH 400AH 500AH
Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V
Working Voltage Range 40~58.4V 40~58.4V 40~58.4V 40~58.4V 40~58.4V
Max charge current 100A 100A 100A 100A 100A
Max discharge current 100A 100A 100A 100A 100A
Standard charging current 100A 100A 100A 100A 100A
Standard discharge current 100A 100A 100A 100A 100A
DOD 100% 100% 100% 100% 100%
Max string parallel number 15 15 15 15 15
Lifecycle 6000 times 6000 times 6000 times 6000 times 6000 times
Operating Temperature Charge:0~60ºCDischarge:-10~60ºC
Operation Humidity 5~95% 5~95% 5~95% 5~95% 5~95%
Nominal Operation Altitude <3000m <3000m <3000m <3000m <3000m
IP Rating IP65 IP65 IP65 IP65 IP65
Warranty period 5 5 5 5 5
Communication MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383
Certification / / / / /
Net weight ≈50KG ≈50KG ≈50KG ≈50KG ≈50KG
Dimension(L*W*H) 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm
Rack size(L*W*H) 519*409*1087mm 574*482.6*177mm*2 574*482.6*177mm*3 574*482.6*177mm*4 574*482.6*177mm*5


WHY CHOOSE US?
OUR ADVANTAGE
Acustomer-oriented factory which constantly put efforts
on improving product development qualityshortening
product development cycleand ensuring product delivery

FAQ

Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients,  can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.Can I have a sample order?
A:  Yes, we welcome sample orders to test and check quality.

Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A: Generally,  it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
