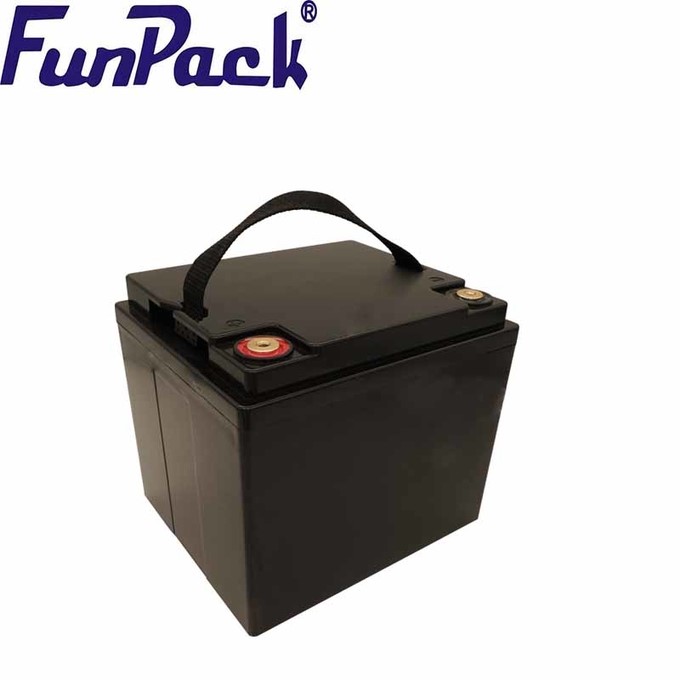

Stable Structure 12V Lithium Battery 4S1P 6Ah Customized for Power Failure

Cel:l Lifepo4 Battery Pack
Battery model: FP-LP-Black1
Max capacity :6Ah
Shipment voltage: 12.8V
Battery assembly method: 4S1P
Discharge cut-off current: ≤1A
Discharge cut-off voltage :10V
Maximum continuous charging: 3A
Maximum continuous discharging :6A
Enclosure rating:IP65
Input/output port type: M8 or M6
Net weight of battery pack: 1KG
Enclosure box size:151*65*100mm(L*W*H)
Material of shell :ABS
Package dimensions :181*95*130mm(L*W*H)
Package gross weight :3KG

Availability:
Quantity:
  • FP-LP-Black1

  • FUNPACK

Product Description

Independent patent technology, stable mass productiun.
Stable structure,high compaction density and excellent cycle life.
Wide operating temp range and good low temp performance.
High safEty and reliability and a wide rang of applications.
Environmentally Friendly.


Product basic information:

Item Specification
Cell Lifepo4 Battery Pack
Battery model FP-LP-Black1
Max capacity 6Ah
Shipment voltage 12.8V
Battery assembly method 4S1P
Discharge cut-off  current ≤1A
Discharge cut-off voltage 10V
Maximum continuous charging 3A
Maximum continuous discharging 6A
Enclosure rating

IP65

Input/output port type M8 or M6
Net weight of battery pack 1KG
Enclosure box size

151*65*100mm(L*W*H)

Material of shell ABS
Package dimensions 181*95*130mm(L*W*H)
Package gross weight 3KG


Main Applications :

Portable charging station, used for power failure, storm , energency,medical equipment, fishing, CPAR, camping, electric car, etc.

Widely applied in POS system, Solar supply system, electric tools, household,appliance and emergent device area, electric bikes, Laptop, camcorder, Military equipment, IR telescope, Medical devices,Remote control, keyboard, mouse, toy car.


123

FAQ:

Q1: Are you Factory,How long to make Battery Pack?
A: We are the Professional Battery Factory,we Need 30day around if we don't have stock of that model.Because need strictly

test and high temperature,high voltage life aging as well in every single Battery.That will takes a fixed date.

Q2: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
Q3: Can the connectors or PCB be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device.
Q4: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.

Q5: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secur
