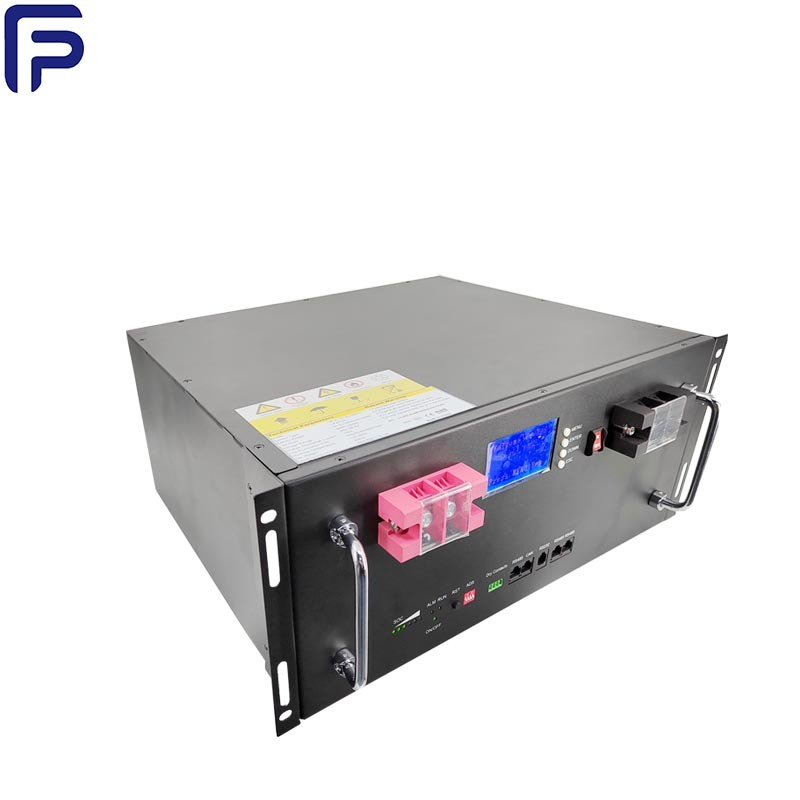

51.2V100ah-5120wh Rack LiFePO4 Energy Storage Battery

  Rated voltage 51.2V
 Rated capacity 100Ah
 Battery pack voltage range 58.4~40V
 Total Power(kWh) 5120Wh
 Combination 1P16S
Insulation resistance test value(Ω) ≤30mΩ
Operating temperature Charging 0 ~ 45ºC;
Discharging -10 ~ 50ºC
 Standard charging current 0.5C
 Quick charging current 1.0C
 Standard discharge current 1.0C
 Maximum continuous discharge current 2.0C
 Gross weight >=55KG
Ambient relative humidity 25-85%RH
Battery size 750*400*155mm(±2mm)
Open circuit voltage Open circuit voltage measured within 24 hours after standard charge
Capacity retention Fully charging, store them at (20±5)ºC for 28 days, then discharge to 40V @0.2C.
Availability:
Quantity:
  • LH-LP-JT5A

  • FUNPACK

Product Description


Battery parameter Remark
1  Rated voltage 51.2V /
2 Rated capacity 100Ah /
3 Battery pack voltage range 58.4~40V /
4 Total Power(kWh) 5120Wh /
5 Combination 1P16S /
6 Insulation resistance test value(Ω) ≤30mΩ /
7 Operating temperature Charging 0 ~ 45ºC; /
Discharging -10 ~ 50ºC
8 Standard charging current 0.5C /
9 Quick charging current 1.0C /
10 Standard discharge current 1.0C /
11 Maximum continuous discharge current 2.0C 10S
12 Gross weight >=55KG /
13 Ambient relative humidity 25-85%RH /
14 Battery size 750*400*155mm(±2mm) /
15 Open circuit voltage Open circuit voltage measured within 24 hours after standard charge ≥51V
16 Capacity retention Fully charging, store them at (20±5)ºC for 28 days, then discharge to 40V @0.2C. ≥300min
Discharging time≥300min

No. Description

Remark
1 Anderson terminal Positive port/Negative port
2 Anderson terminal Positive port/Negative port
3 Main switch ON/OFF
4 / /
5 Reset button RST
6 RS485/CAN RS485/CAN
7 / /
8 ADS Address code switch
9 LED RUN
10 LED ALM
11 LED CAPACITY
12 Handle Handle
13 Hanger Bracket Pendant

Product Description

51.2V 100Ah Lifepo4 Battery Pack For Energy Storage Equipment 3000Cycles Life

Product Description Of 51.2V  100Ah Lifepo4 Battery Pack:

Power display: through the LED lamp display battery power, intuitive understanding of the battery condition;

Waterproof aviation connector: adopt waterproof aviation connector, safe and reliable.

Wider working temperature range, excellent high and low tempera-ture performance.

Battery pack safety, with temperature probe, automatic start protection when the temperature exceeds;

Battery cycle life is high, in line with low carbon, energy saving, environmental protection values;



FAQ
1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients,  can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.Can I have a sample order?
A:  Yes, we welcome sample orders to test and check quality.

Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A: Generally,  it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
