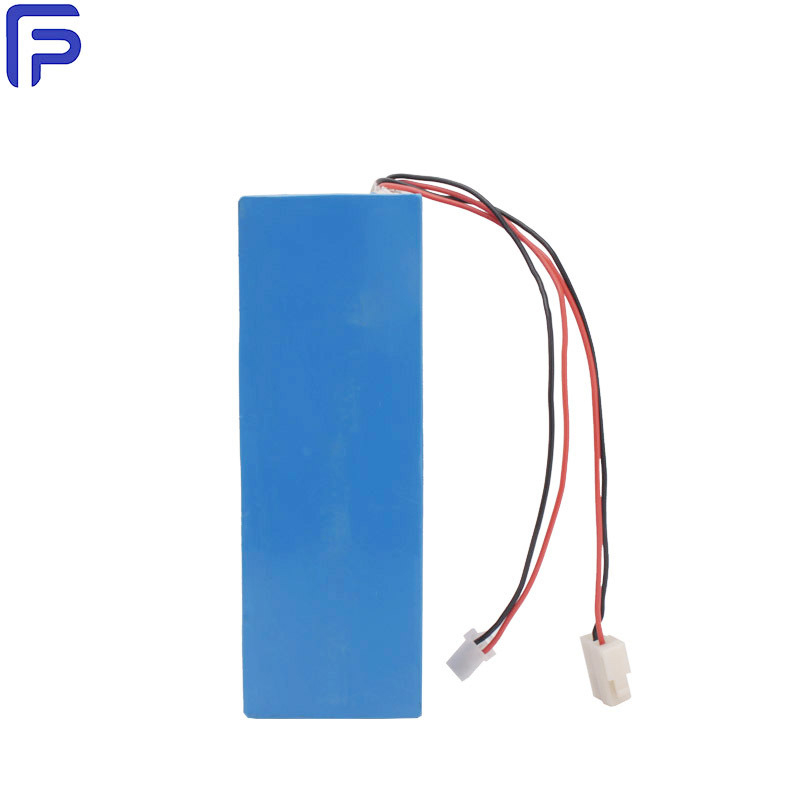

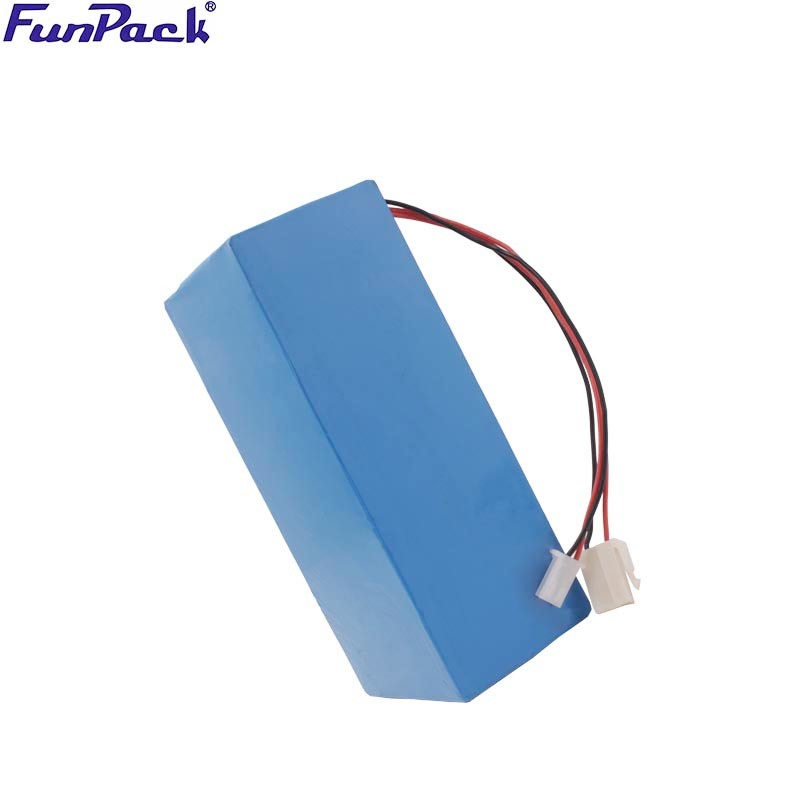

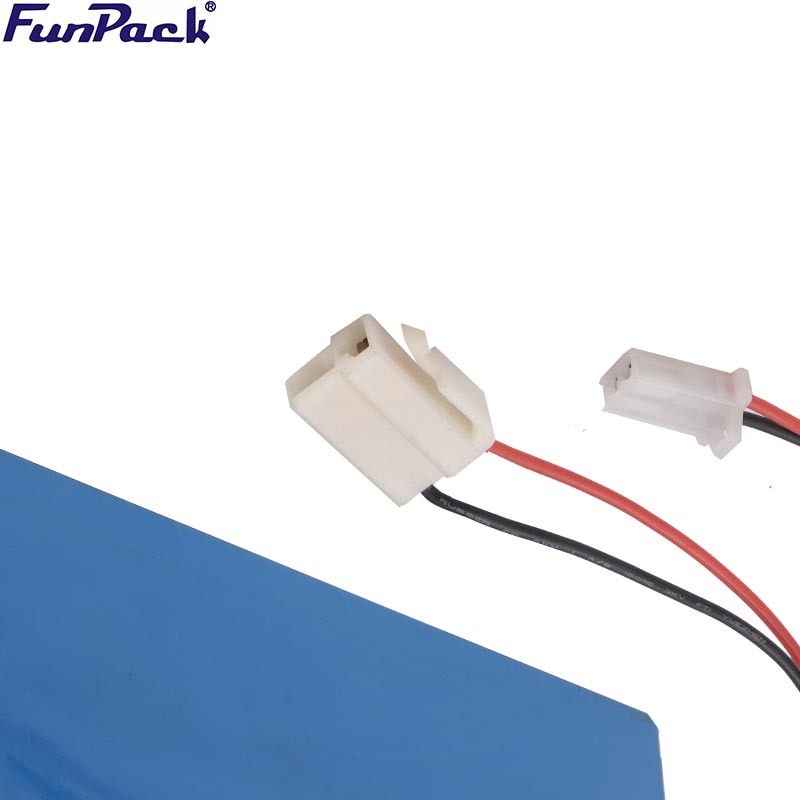

Rechargeable 3s8p 11.1V 20800mAh Lithium Li-ion Battery Pack

Nominal capacity: 20.8Ah @0.2C
Minimum capacity: 19.2Ah @0.2C
Nominal voltage: 11.1V
Max Charging voltage: 12.6V±0.05 V
Discharge ending voltage: 8.25V ±0.05 V
Standard charge current: Customized
Standard discharge current: Customized
Recommended cell surface max temperature during charge and discharge: Charge: 0~45ºCDischarge: -20~60ºC
Storage temperature and time: 1 year: -20~25ºC3 months: -20~45ºC1 month: -20~60ºC
Battery dimension: 75*115*68mm
Weight About: 1.8kg
Overcharge detection voltage: 12.6V ±0.05 V
Overdischarge detection voltage: 8.25V±0.05 V
Max continuous discharge current: 10A
Operating temperature: Customized
NTC resistor: Customized
0V battery charge function: Available
Availability:
Quantity:
  • FP-3s8p 11.1V 20800mAh

  • FUNPACK

Product Description

Description Of 3s8p 11.1V 20800mAh Lithium Li-ion Battery Pack:

The storage time of batteries varies at different temperatures, ranging from -20 ° to 25 ° C for one year, from -20 ° to 45 ° C for three months, and from -20 ° to 60 ° C for one month


Basic Specification Of 3s8p 11.1V 20800mAh Lithium Li-ion Battery Pack:


Battery Specification Of Li-ion Battery Pack:
Item Specification
Nominal capacity 20.8Ah @0.2C
Minimum capacity 19.2Ah @0.2C
Nominal voltage 11.1V
Max Charging voltage 12.6V±0.05 V
Discharge ending voltage 8.25V ±0.05 V
Standard charge current Customized
Standard discharge current Customized
Recommended cell surface max temperature during charge and discharge Charge: 0~45ºC
Discharge: -20~60ºC
Storage temperature and time 1 year: -20~25ºC
3 months: -20~45ºC
1 month: -20~60ºC
Battery dimension 75*115*68mm
Weight About 1.8kg
BMS Electric Features
Overcharge detection voltage 12.6V ±0.05 V
Overdischarge detection voltage 8.25V±0.05 V
Max continuous discharge current 10A
Operating temperature Customized
NTC resistor Customized
0V battery charge function Available



Main Applications Of 3s8p 11.1V 20800mAh Lithium Li-ion Battery Pack:
Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication, Blue tooth Headset, Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.
