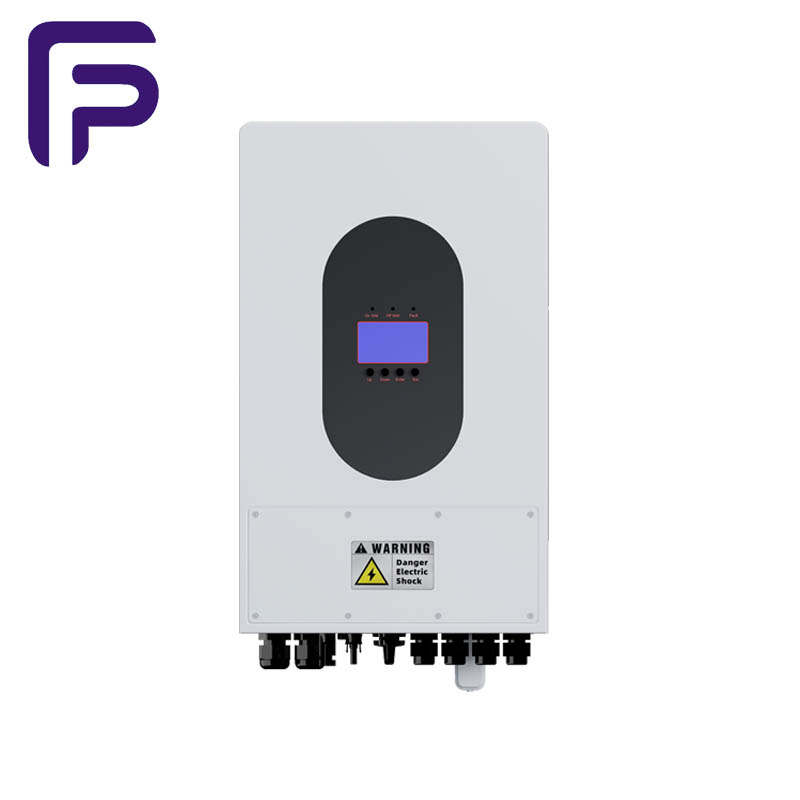

1kw 2kw 3kw 4kw 5kw 6kw 51.2V Pure Sine Wave Off Grid Hybrid MPPT Solar Power Panel Inverter

Battery Type :Lithium
Nominal Battery voltage(V) :51.2

Max.Input Voltage(V):500
MPPT Operating Voltage Range(V):120-430
Start-up Voltage(V):150
Nominal Input Voltage(V):360
Number of Strings per MPPT:1

\Nominal Output Voltage(V): 220/230/240
Nominal Output Freqency(Hz): 50/60
Dimension(W*H*Dmm): 350*580*230
Weight(kg): 25

Product Description

Product Description Of White Solar Power Panel Inverter :

Model	GH3600TL	GH4600TL	GH5000TL
Battery Data
Battery Type	Lithium	Lithium	Lithium
Nominal Battery voltage(V)	51.2	51.2	51.2
Max. Continuous Charging Current(A)	80	95	95
Max. Charge Power(W)	3600	4600	5000
Max. Discharge Power(W)	3600	4600	5000
PV String Input Data
Max.Input Power(W)	5200	6600	7000
Max.Input Voltage(V)	500	500	500
MPPT Operating Voltage Range(V)	120-430	120-430	120-430
Start-up Voltage(V)	150	150	150
Nominal Input Voltage(V)	360	360	360
Number of Strings per MPPT	1	1	1
AC Output Data
Rated Power(W)	3600	4600	5000
Nominal Output Current(A)	17.2	20	23.9
Nominal Output Voltage(V)	220/230/240	220/230/240	220/230/240
Nominal Output Freqency(Hz)	50/60	50/60	50/60
Mechanical Data
Dimension(WHDmm)	350580230	350580230	350580230
Weight(kg)	25	25	25
Protection Level	IP20	IP20	IP20
Installation Type	Wall Installation with Wall Bracket

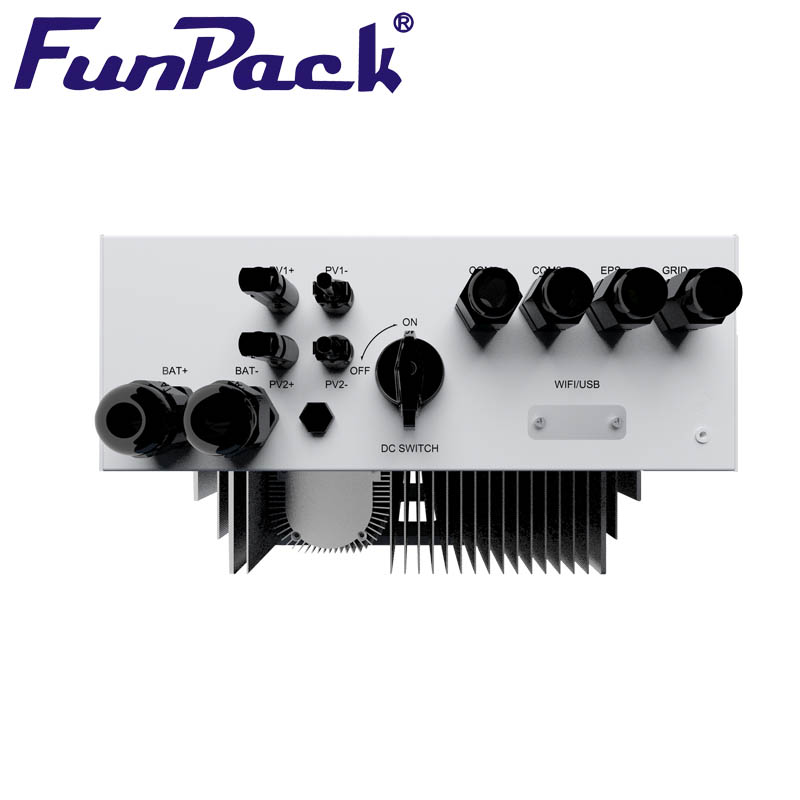

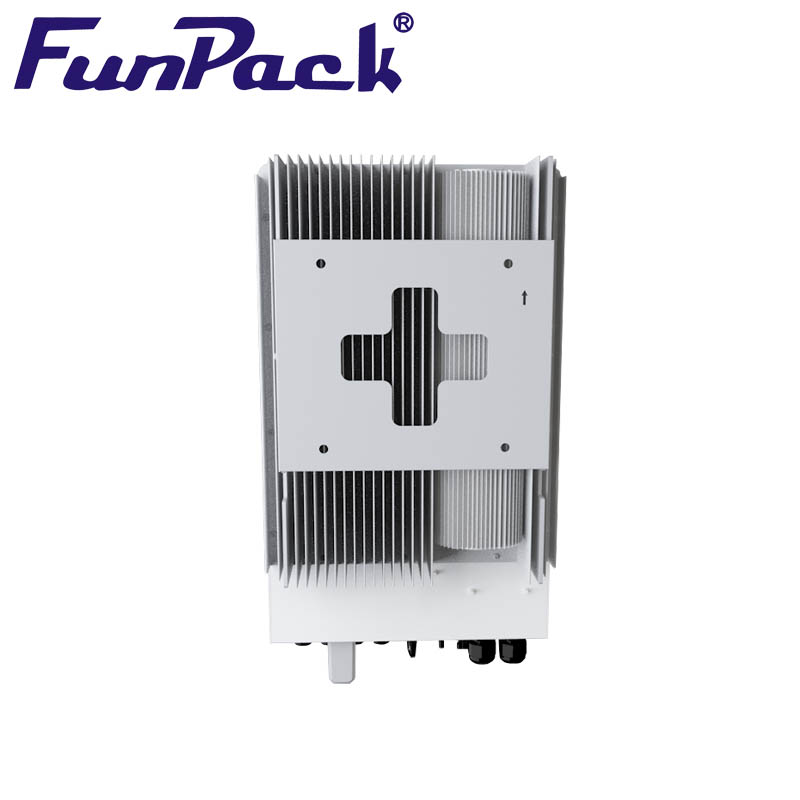

详细图-3 详细图-4
