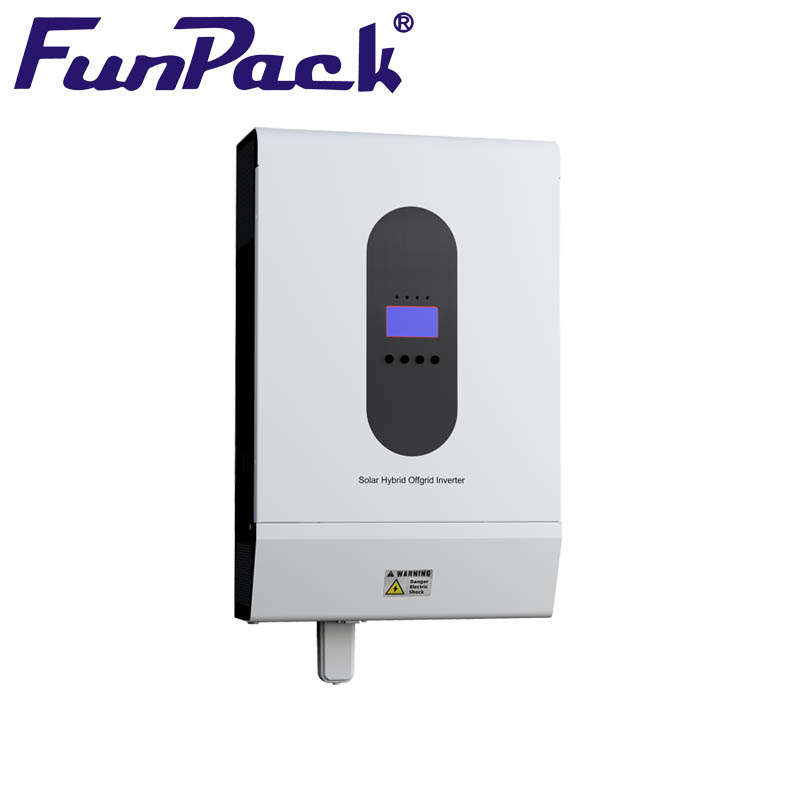

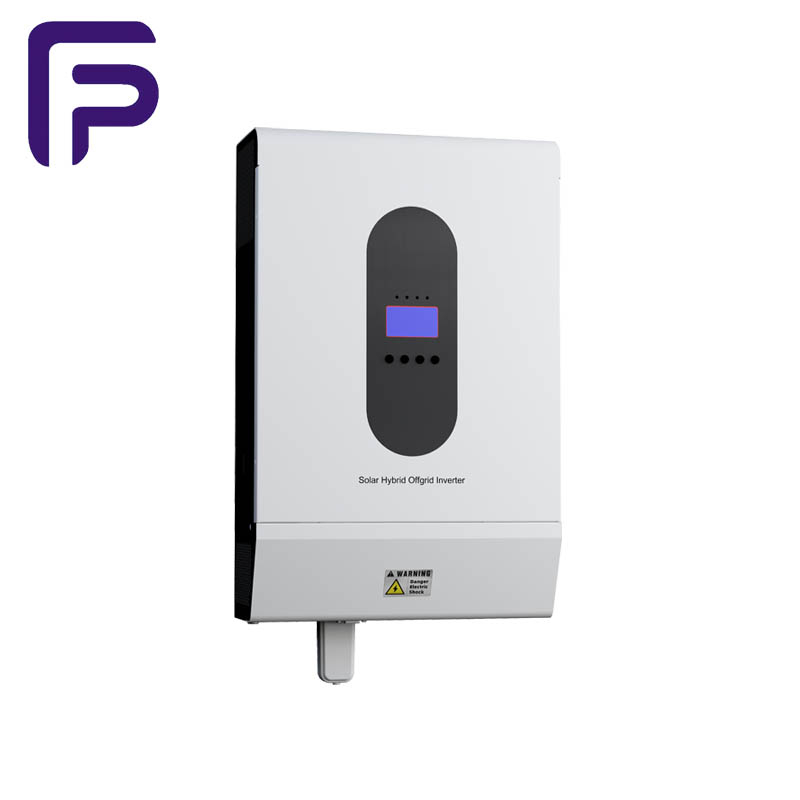

24V 3kw 48V 5kw Split Phase on Grid Tie Hybrid Inverter for Lithium Battery

Model: OH3000TL
Battery Type :Lithium
Nominal Battery voltage(V): 24
Max. Continuous Charging Current(A) :120
Max. Charge Power(W): 3200
Max. Discharge Power(W) :3000
Max.Input Power(W): 2000
Max.Input Voltage(V) :150
MPPT Operating Voltage Range(V): 30-115
Start-up Voltage(V): 30
Nominal Input Voltage(V): 100
Number of Strings per MPPT: 1
Rated Power(W): 3000
Nominal Output Current(A): 13.6
Nominal Output Voltage(V): 220/230/240
Nominal Output Freqency(Hz) :50/60
Dimension(W*H*Dmm): 300*485*120
Weight(kg): 9
Protection Level: IP20
Installation Type: Wall Installation with Wall Bracket


Availability:
Quantity:
  • FUNPACK

Product Description


Product Description Of White 24V 48V Solar inverter :

The installation height is below 2000 meters above sea level, and wall brackets are used for wall installation. The size is 300 * 485 * 120, which communicates with the BOSS CAN

Product Basic Information Of White 24V 48V Solar inverter:

Model OH3000TL OH5000TL
Battery Data
Battery Type Lithium Lithium
Nominal Battery voltage(V) 24 48
Max. Continuous Charging Current(A) 120 80
Max. Charge Power(W) 3200 4500
Max. Discharge Power(W) 3000 5000
PV String Input Data
Max.Input Power(W) 2000 5500
Max.Input Voltage(V) 150 500
MPPT Operating Voltage Range(V) 30-115 120-430
Start-up Voltage(V) 30 150
Nominal Input Voltage(V) 100 300
Number of Strings per MPPT 1 1
AC Output Data
Rated Power(W) 3000 5000
Nominal Output Current(A) 13.6 21.7
Nominal Output Voltage(V) 220/230/240 220/230/240
Nominal Output Freqency(Hz) 50/60 50/60
Mechanical Data
Dimension(W*H*Dmm) 300*485*120 300*485*120
Weight(kg) 9 9.5
Protection Level IP20 IP20
Installation Type Wall Installation with Wall Bracket


Main Applications Of White 24V 48V Solar inverter:

This product can convert unstable alternating current from solar energy into direct current that can be stored in a battery for battery use.
