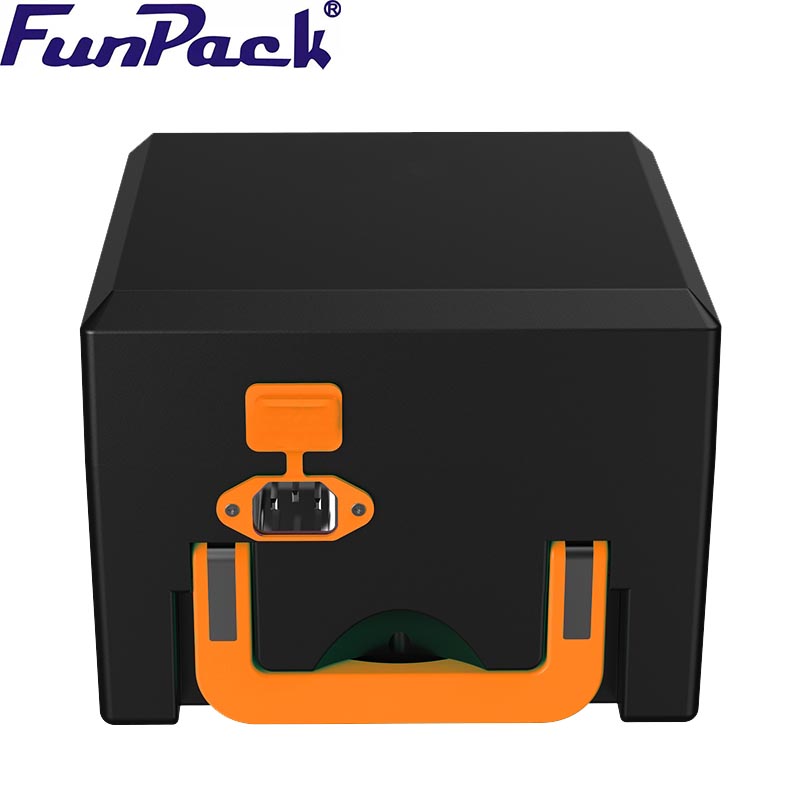

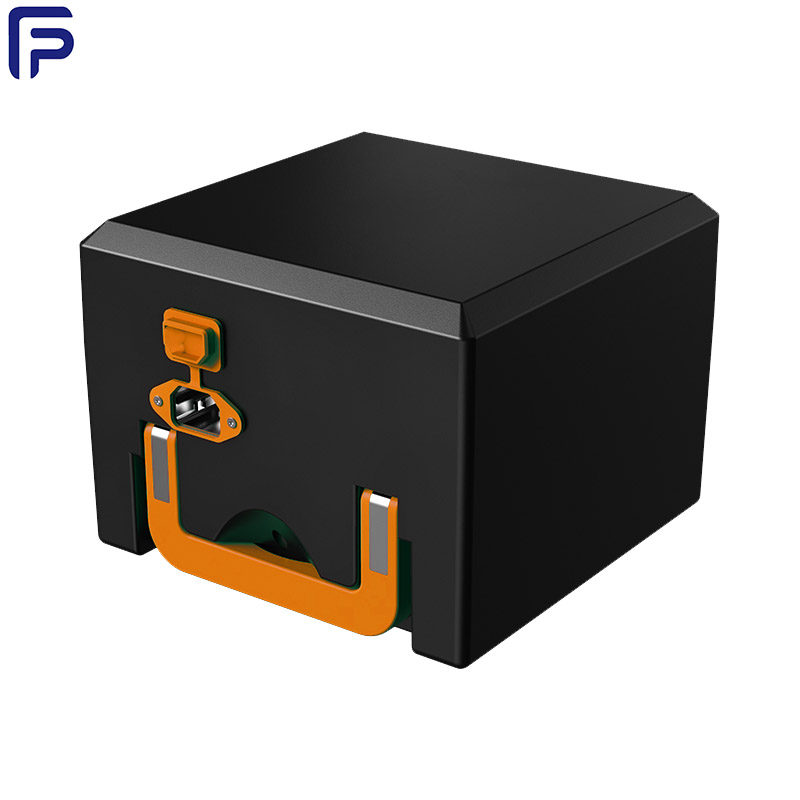

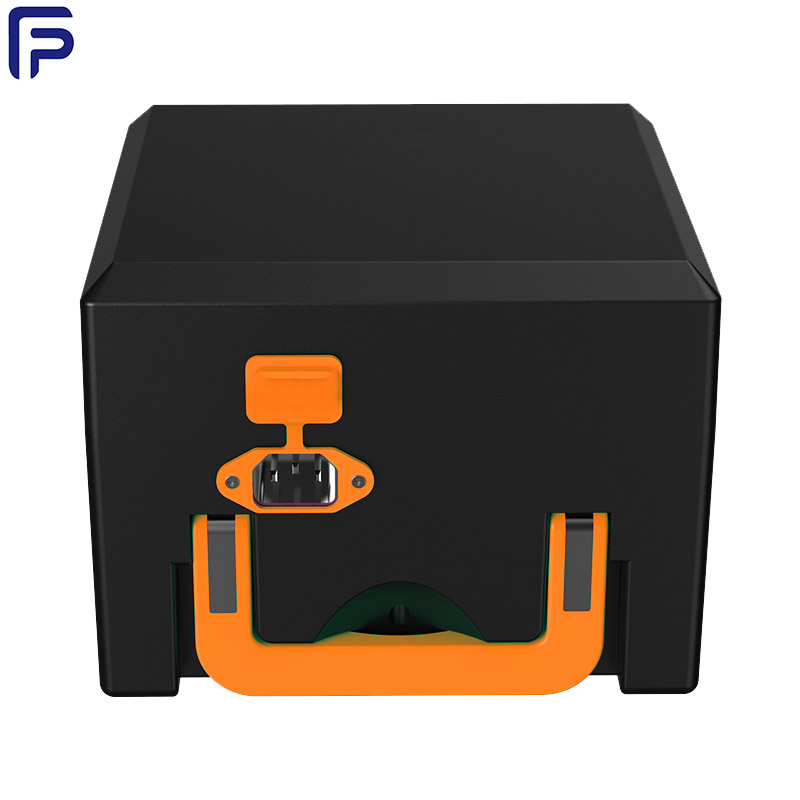

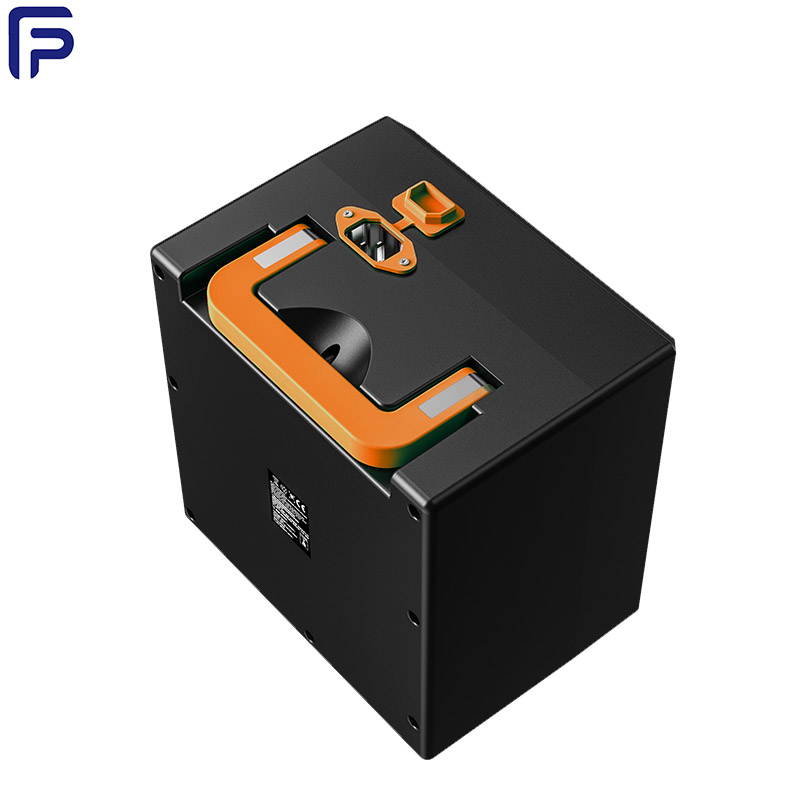

18650 Electric Motorcycle Battery 60V 20Ah Lithium Ion ODM OEM

Type:Lithium Battery Pack
Application:Electric Motorcycle
Voltage:60V
Cycle Life:1000 Times
Capacity:20Ah Or Customized
Cell:Panasonic/LG/Local Cell/Samsung
Certification:CE/ROSH/MSDS/UN38.3
OEM:Acceptable
High Light:18650 Electric Motorcycle Battery, 20Ah Electric Motorcycle Battery, ODM Lithium Ion Motorcycle Battery
Availability:
Quantity:
  • FP-18650-S

  • Funpack

Product Description

Product Description

18650 60 V 20 Ah High Safety Performance Lithium Ion Battery Pack For Electric Motorcycle

Quick Details

Voltage: 60V                                                       Cycle life: 1000 times

Capacity: 20Ah                                                 Cell model: 18650 Cells
Dimension: TEB                                                Warranty: one Year
Product Type: Lithium ion Battery 60V

Basic specification:

Item Specification
Cell 18650
Battery model FP-16850-S
Max capacity 60V 20Ah
Outgoing voltage >60V
working temperature
Charge 0~45℃
Discharge -20~60℃

BMS

Item Content Criterion

OVC

Over charge detection voltage 4.250±0.050V
Detection delay time 1.0±0.3S
Over charge release voltage 4.150±0.050V

OVD

Over discharge detection voltage 2.700±0.080V
Detection delay time 1.0±0.3S
Over discharge release voltage 3.000±0.100V
Rated operational current ≤20A

OCD

Primary over current detection current 50±5A
Primary detection delay time 800mS-1200mS
Secondary over current detection curren 100±10A
Secondary detection delay time 50mS-200mS
Short protection Detection condition >200A, 200uS-300uS
Protection yes Exist
Protective release condition Disconnect short circuit
Charging management Charging overvoltage protection voltage 43.5±0.4V
Rated charging current 3A
Software overcharges 4±0.2A
Detection delay time 300mS-600mS
Temperature protection Charging high temperature protection temperature 50±4℃
Charging protection recovery temperature 47±4℃
Discharge high temperature protection temperature 70±4℃
Discharge protection recovery temperature 55±4℃
Low temperature protect temperature of charging 0±4℃
Low temperature recovery temperature of charging 5±4℃
Interior resistance Main loop electrify resistance ≤60mΩ
The static current Since the power consumption ≤60.0uA
NTC YES Exist 10K±1% B3435±1%

FP-18650电动摩托车-002FP-18650电动摩托车-003FP-18650电动摩托车-004

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere.

Our OEM and ODM services are ready to do it.

Supply Ability:

1000 Pieces per Day

Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.
