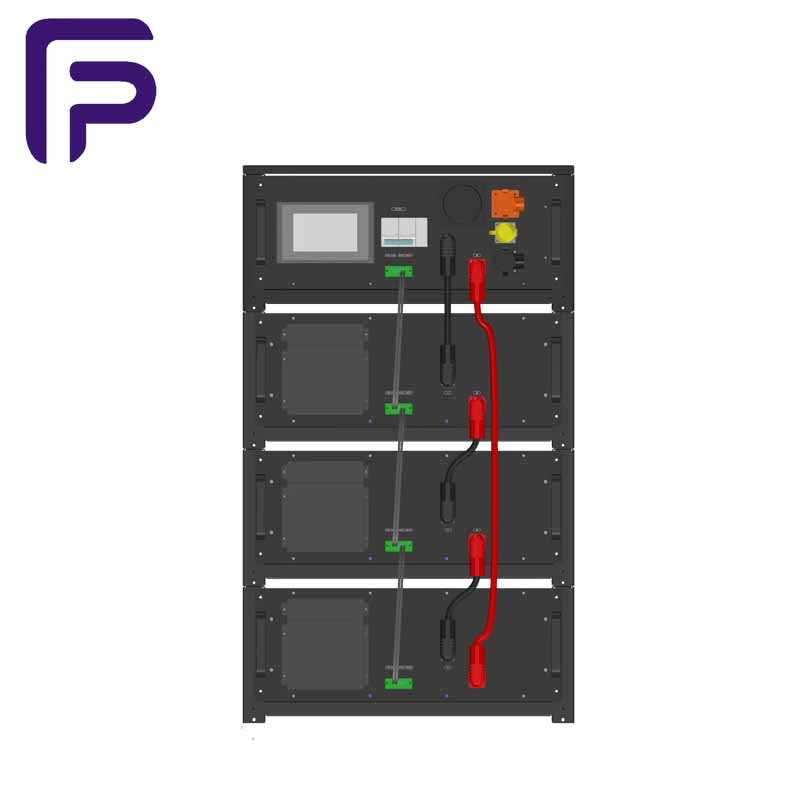

192V LiFePO4 High Voltage Battery 6000 Cycles Rack Lifepo4 Battery Module

Type Name:LifePO4 Battery Pack
Battery Model:FP192A-C
Rated Voltage:51.2V
Capacity:135AH -405AH
Energy:6-20kWh
Cycle Life:6000 Cycles
Net Weight:50- 150kg
Dimension(L*W*H):574*482.6*177mm/pcs
Availability:
Quantity:
  • FP192A-C

  • Funpack

Product Description

Description Of 192V LFP Energe Storage Battery:

192V LiFePO4 High Voltage Battery 6000 Cycles Rack Lifepo4 Battery Module

This battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, temperature range and environmental protection.

This product specification describes the type, size, structure, electrochemistry performance, service life, and BMS characteristics.

  • Long cycle life

  • Ultra low self discharge

  • More usable capacity

  • BMS Protection

  • Fast Charging

  • Light weight

  • Increased flexibility

  • Easy installation

  • Environment friendly

Basic information Of 192V Energe Storage Battery :

Model FP192A FP192B FP192C
Battery Type LiFePO4 LiFePO4 LiFePO4
Energy 6.912KWh 13.824KWh 20.736KWh
Capacity 135AH 270AH 405AH
Rated Voltage 51.2V 51.2V 51.2V
Working Voltage Range 4058.4V 4058.4V 4058.4V
Max charge current 100A 100A 100A
Max discharge current 100A 100A 100A
DOD 100% 100% 100%
Max string parallel number 15 15 15
Life cycle 4000 cycles 4000 cycles 4000 cycles
Operating Temperature Charge:0~60Discharge:-1060
Operation Humidity 5~95% 5~95% 5~95%
Nominal Operation Altitude <3000m <3000m <3000m
IP Rating IP65 IP65 IP65
Warranty period 5 5 5
Certification MSDS UN383 MSDS UN383 MSDS UN383
Net weight 50KG 100KG 150KG
Rack size(L*W*H) 519*409*1087mm 574*482.6*177mm*2 574*482.6*177mm*3

Main Applications Of 192V Energe Storage Battery:

This product is mainly used for Solar System,Marine/Boat/RV,Electric Vehicle,Electric Power Tools,Street Solar Lights and  so on.

未标题-5未标题-6未标题-7

FAQ:

Q1: Are yocu fatory?

A: Yes, we are professional manufacturer for polymer batteries since 2017.
Q2: When you ship my order?
A: Normally 35-45days after payment confirmed, but it can be negotiated based on order qty and production schedule.
Q3: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q4: Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.

Q5: Where can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority.
