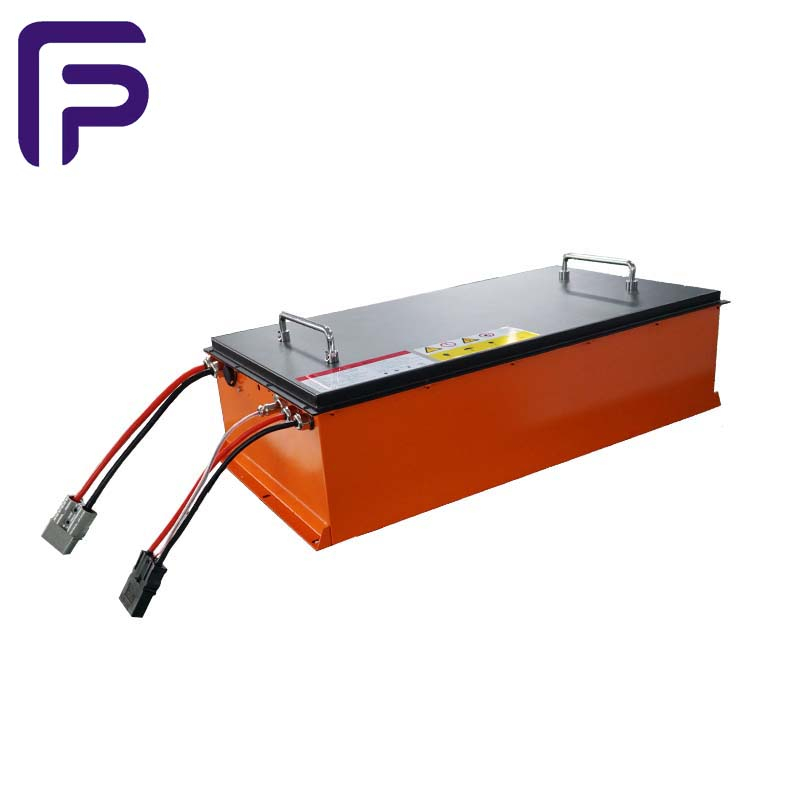

EV LiFePO4 Battery Pack 60V 72V with Bluetooth and Communication

This battery can match Bluetooth and communication according to customer needs, and can be used with range extenders.
Specifications can be customized according to customer needs.
Availability:
Quantity:
  • L85001

  • Funpack

Product Description

This battery can match Bluetooth and communication according to customer needs, and can be used with range extenders.
Specifications can be customized according to customer needs.


Main Application:
It is used in golf carts, low-speed cars, EV cars and customer customization.



Catalog-Low speed car battery

Specification

FP6090

FP60100

FP72100

Rated voltage

60.8V

60.8V

73.6V

Rated capacity

90Ah

100Ah

100Ah

Battery pack voltage range

47.5~69.35V

47.5~69.35V

57.5~84V

Total Power

5472Wh

6080Wh

7680Wh

Combination

19S1P

19S1P

23S1P

Insulation resistance test value

≥20MΩ

≥20MΩ

≥20MΩ

Operating temperature

Charging 0 ~ 55℃;
Discharging -10 ~ 60℃



Standard charging current

0.5C

0.5C

0.5C

Quick charging current

1.0C

1.0C

1.0C

Standard discharge current

0.5C

0.5C

0.5C

Max continuous discharge current

2.0C

2.0C

2.0C

Net weight

52KG

52KG

59KG

Gross weight

55KG

55KG

62KG

Battery size

665*327*176mm(±2mm)

Carton size

785*522*275mm(±2mm)
