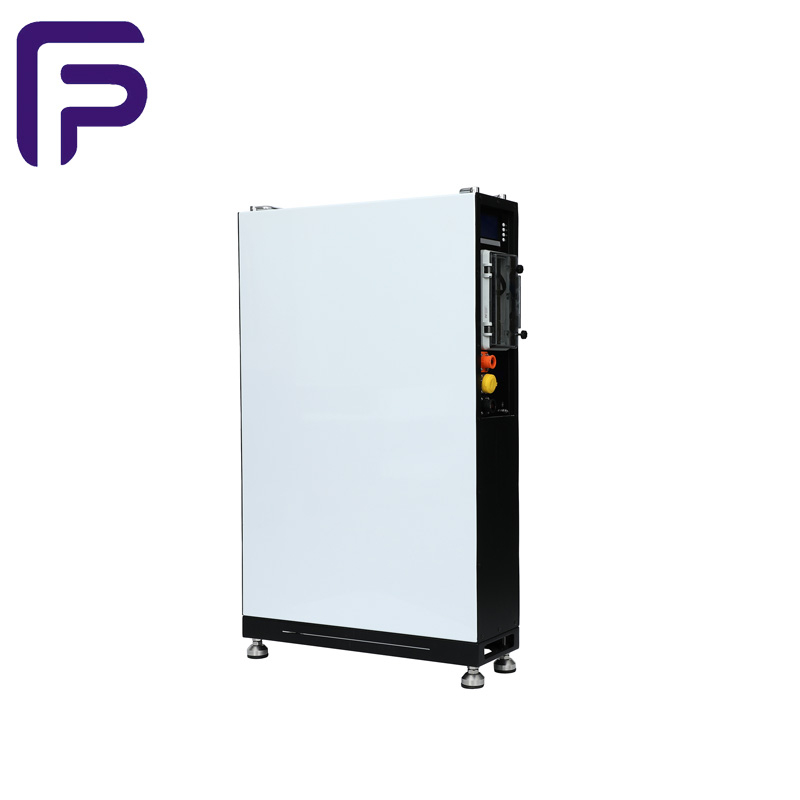

51.2V FP100 Lifepo4 Battery Powerwall 200Ah 6000 Cycles For Energy Storage

Rated Voltage:51.2V
Capacity:100ah, 150ah, 200ah, 280ah, etc.
Power:5kw, 7kw, 10kw, 15kw, etc.
Combination Method:16s1p
Net Weight:50-120kg
Gross Weight:65-140kg
Certification:MSDS, Un38.3, CE
Life Cycle:6000 Cycles
Availability:
Quantity:
  • FP100

  • Funpack

Product Description

Product Description Of FP100 Lifepo4 Battery:

51.2V P100 Lifepo4 Battery Powerwall 200Ah 6000 Cycles For Energy Storage

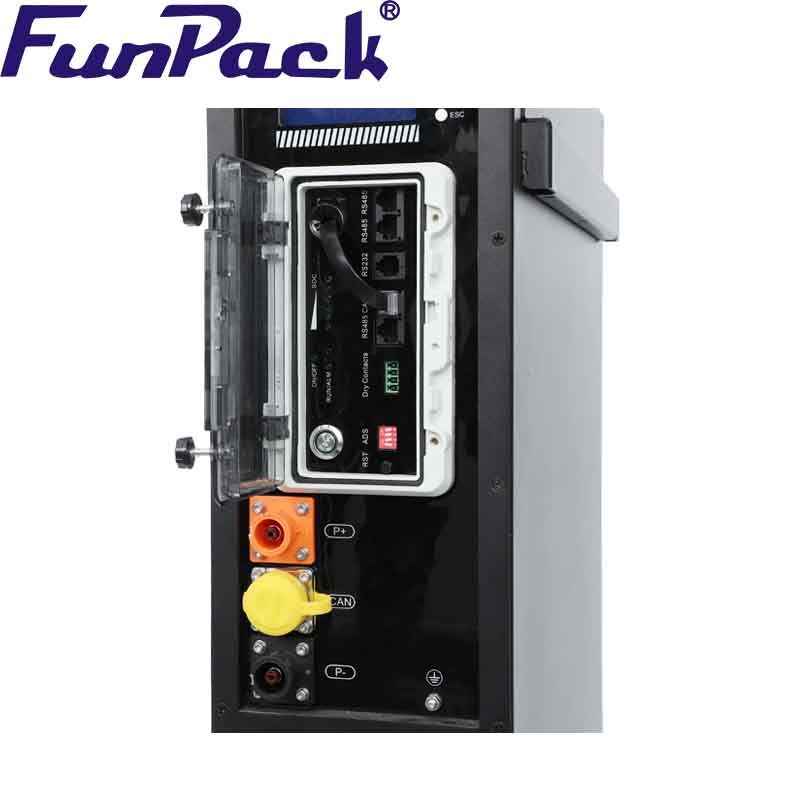

It has RS232 /RS485 and canbus standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current,environment temperature, and charging/discharging current.

It has over-temperature, over charge, under-voltage, over-current, short circuit alarm function.

Product Basic Information Of FP100 Lifepo4 Battery:

Item Specification
Combination method
16S2P
Minimum capacity 200Ah
Charging Voltage
56-58V
Maximum charging current 200A
Maximum discharging current
200A
Internal Impedance
≤0.5mΩ
Safety Level
IP65
Size
502*171*823mm


Main Applications Of FP100 Lifepo4 Battery:

This product is mainly used for energy storage equipment, and customers also can customize it.

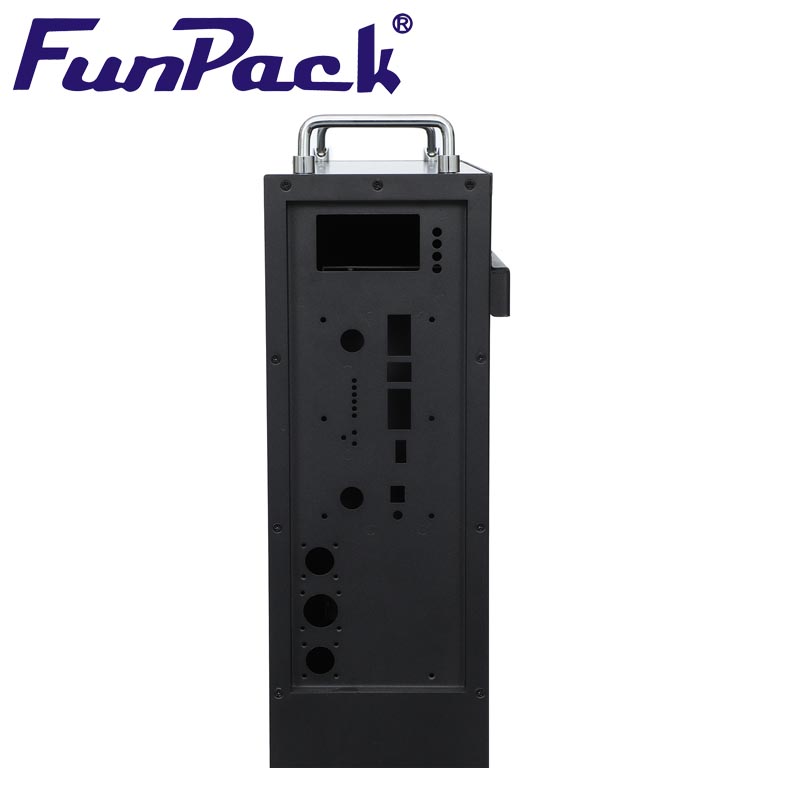

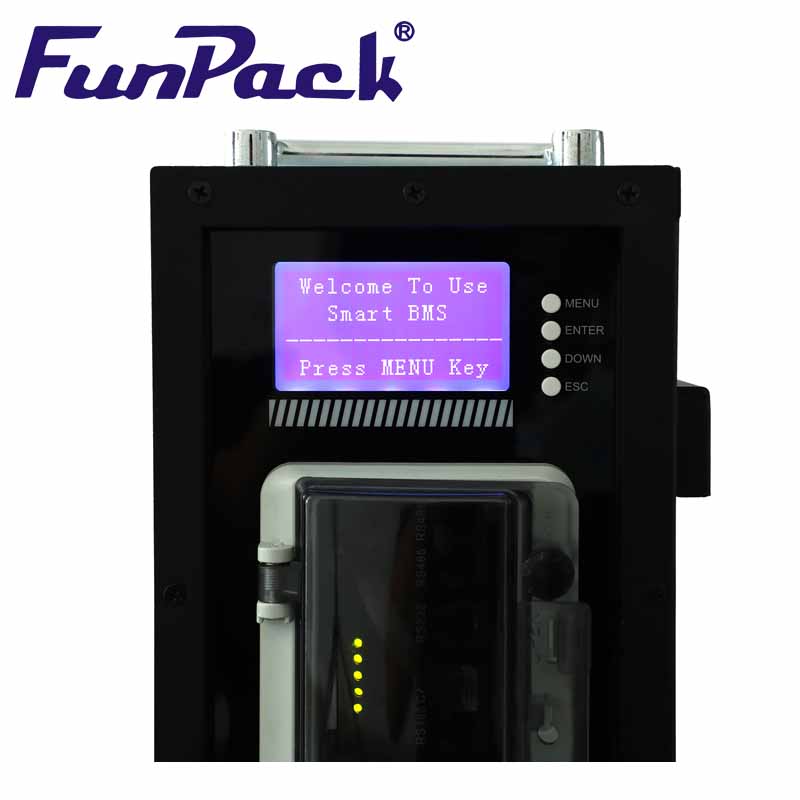

详细图-白6详细图-白5详细图-6黑
