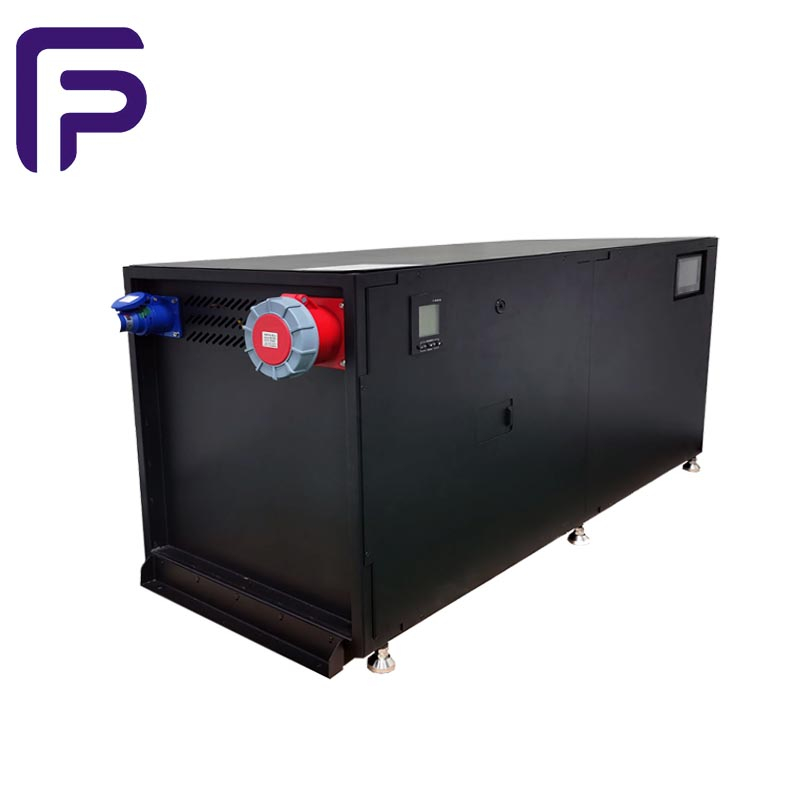

28.8kWh LiFePO4 Battery Energy System 150Ah 192V High Voltage Battery

Type Name:LifePO4 Battery Pack
Battery Model:ES2880
Rated Voltage:192V
Capacity:150AH
Energy:28.8 KWh
Cycle Life:4000 Cycles
Net Weight:260kg
Dimension(L*W*H):1216*500*545 Mm
Availability:
Quantity:
  • ES2880

  • Funpack

Product Description

There are six feet on the bottom of the battery to make it waterproof.

There are ventilation holes on both sides to facilitate heat dissipation.

The display is touchscreen.

The charging port is compatible with both two - phase and three - phase electricity.


Product basic information of LiFePO4 Battery Pack:

Item

Specification

Model

ES2880

Energy

28.8KWh

Rated Voltage

192V

Max Charge Current

100A

Standard Charge Current

100A

DOD

100%

Designed Life-span

4000 cycles

Operation Humidity

5 95%

IP Rating

IP22

Net Weight

≈ 260kg


Main Applications of LiFePO4 Battery Pack :

This product is mainly used for Energy storage system for Industrial and household, Dining car and so on.
