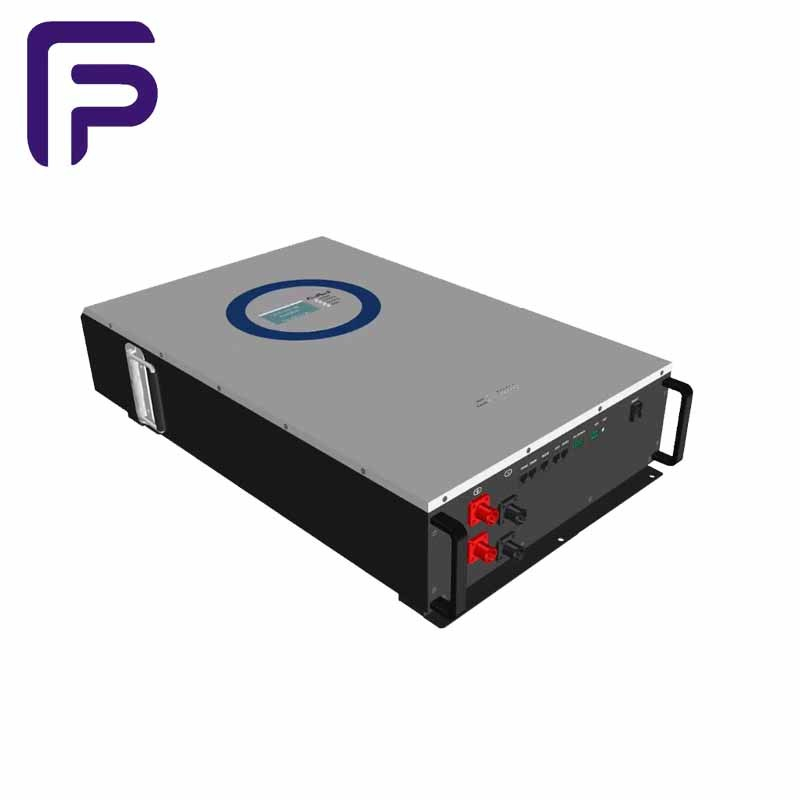

51.2V LiFePO4 Powerwall 100ah 150ah 200ah 280ah Solar Energy Storage Battery

Model FP8-1 FP8-R
Battery Type LiFePO4 LiFePO4
Energy 5.12Wh 6.912Wh
Capacity 100AH 150AH
Rated Voltage 51.2V 51.2V
Working Voltage Range 40~58.4V 40~58.4V
Max charge current 100A 100A
Max discharge current 100A 100A
Standard charging current 100A 100A
Standard discharge current 100A 100A
DOD 100% 100%
Max string parallel number 15 15
Life cycle 6000 times 6000 times
Operating Temperature Charge:0~60ºCDischarge:-10~60ºC Charge:0~60ºCDischarge:-10~60ºC
Operation Humidity 5~95% 5~95%
Nominal Operation Altitude <3000m <3000m
IP Rating IP65 IP65
Warranty period 5 5
Communication MSDS UN383 MSDS UN383
Certification / /
Net weight ~50KG ~50KG
Dimension(L*W*H) 683*420*145mm 683*420*145mm

Availability:

Quantity:



Inquire Add to Basket

Model:
FP8-1, FP8-R
Brand:
FUNPACK

Product Description

Product Description Of FP8-1 FP8-R Lifepo4 Battery:

51.2V Lifepo4 Energy Storage Battery Powerwall 100Ah 150Ah 200Ah 280Ah For Solar System 6000 Cycles

This is our vertical home energy storage battery, using high-capacity strong-acid lithium iron battery, equipped with multiple protection functions BMS, high-end metal cover, embedded LCD screen, IP65 waterproof design, 6000 times long life, maximum support for 15 series and parallel expansion Mode, easy to maintain, easy to maintain, can meet various differences in efficiency, power grid and complex power consumption environment, and escort the protection and driving of our family's power consumption. Support regulations.

Highlight of FP8-1 FP8-R Lifepo4 Battery:

It has RS232 /RS485 and canbus standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current,environment temperature, and charging/discharging current.

It has over-temperature, over charge, under-voltage, over-current, short circuit alarm function.

Product Basic Information Of FP8-1 Lifepo4 Battery:

Technical Parameters
Model	FP8-1	FP8-R
Battery Type	LiFePO4	LiFePO4
Energy	5.12Wh	6.912Wh
Capacity	100AH	150AH
Rated Voltage	51.2V	51.2V
Working Voltage Range	40~58.4V	40~58.4V
Max charge current	100A	100A
Max discharge current	100A	100A
Standard charging current	100A	100A
Standard discharge current	100A	100A
DOD	100%	100%
Max string parallel number	15	15
Life cycle	6000 times	6000 times
Operating Temperature	Charge:0~60ºCDischarge:-10~60ºC	Charge:0~60ºCDischarge:-10~60ºC
Operation Humidity	5~95%	5~95%
Nominal Operation Altitude	<3000m	<3000m
IP Rating	IP65	IP65
Warranty period	5	5
Communication	MSDS UN383	MSDS UN383
Certification	/	/
Net weight	~50KG	~50KG
Dimension(LWH)	683420145mm	683420145mm

FAQ:

Q1. Are you factory?

A: Yes, we are professional manufacturer for polymer batteries since 2017.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipment.

Q3. Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q4. Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.

Q5. Where can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are in urgent need of a price, please call us or let us know via Whatsapp or email and we will give priority to your inquiry.
