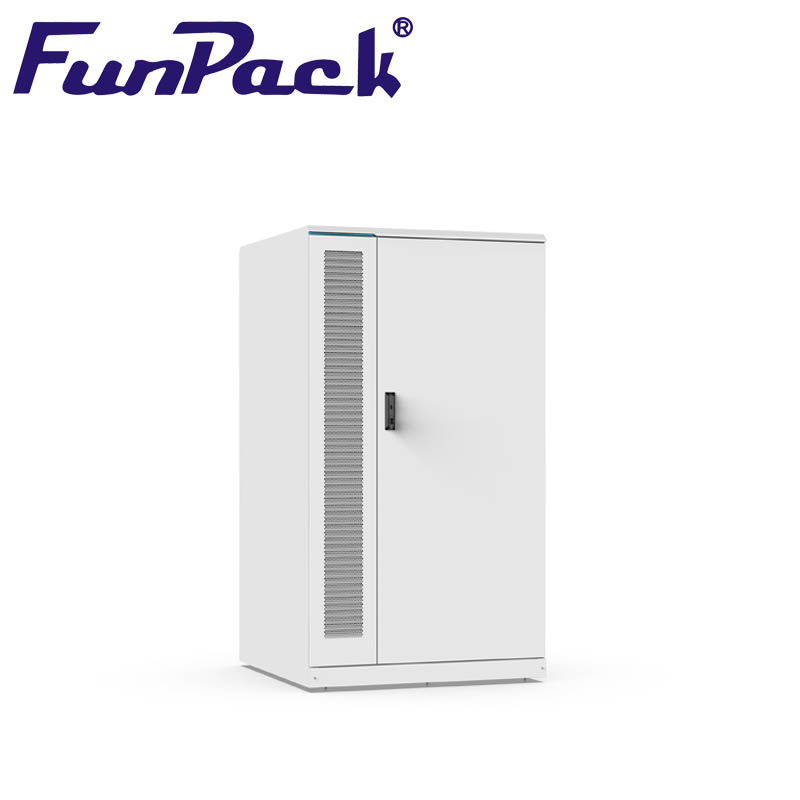

Rechargeable TRACK Outdoor Liquid-cooled Battery LiFePO4 Battery Module

Model: TRACK-1500-372
Cell type :LFP280
Group mode: 1P416S
High-voltage box :PDU-1500-280-F1
Rated Voltage :1331.2V
Voltage range: 1206.4V~1456V
Rated capacity :372.736kWh
Rated charge and discharge power: 186kW
Rated charge and discharge current :140A
Maximum continuous charging and discharging current: 280A
Charge and discharge efficiency: ≥95%
Battery cluster internal resistance: ≤20mΩ
Cycle life: ≥6000cycles(0.5,25ºC80%EOL90%DOD)
Operating Temperature: Charge:0-55ºCdischarging:-20~55ºC
Recommended storage temperature: 15~35ºC
Relative humidity: 0~90%RH
Maximum allowable altitude: 4000m(over 2000 m,it will operate in derating)
Self power consumption/month: ≤3%
Cooling method: Liquid cooling
Manufacturing process: Laser welding
Communication mode: CAN/RS485/dry contact
Dimensions(WXDXH): 1300±5mm1300±5mm*2300±5mm
Availability:
Quantity:
  • TRACK-1500-372

  • FUNPACK

Product Description

Product Description Of Liquid-Cooled Battery LiFePO4 Battery:

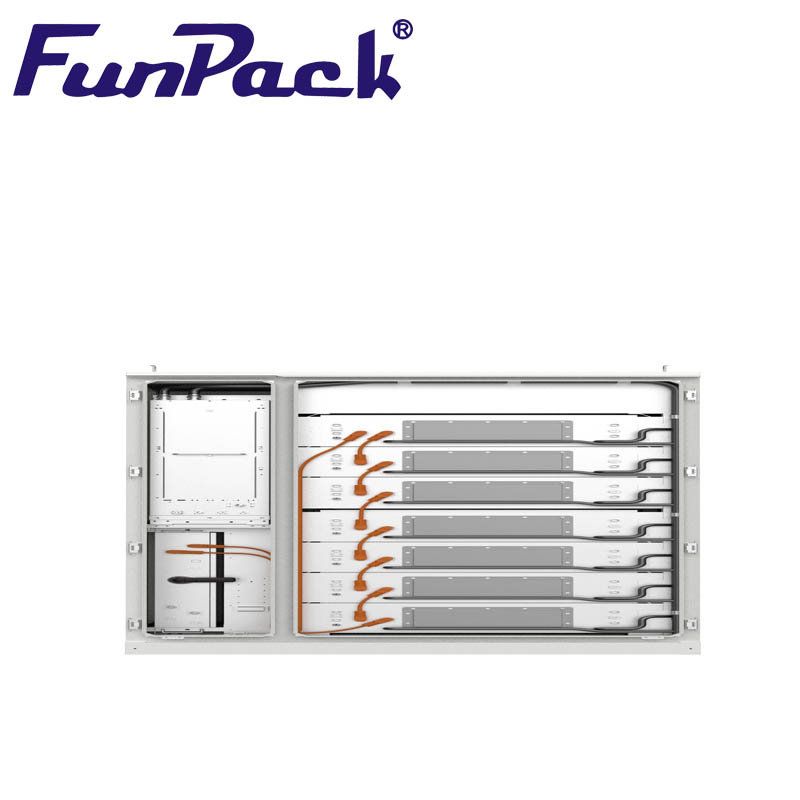

The TRACK liquid cooled battery system adopts a modular design concept, consisting of a lithium iron phosphate battery module, BMS, liquid cooled air conditioning, fire protection system, etc. The efficient liquid cooled battery module and heat dissipation design bring ultra-high energy density, while the temperature difference is less than 3 ° C. The integrated cabinet design is more flexible compared to container type, greatly simplifying transportation and on-site assembly work. It can be connected to PCS separately or used in parallel.


Product Basic Information Of Liquid-Cooled Battery LiFePO4 Battery:


Model TRACK-1500-372
Cell type LFP280
Group mode 1P416S
High-voltage box PDU-1500-280-F1
Rated Voltage 1331.2V
Voltage range 1206.4V~1456V
Rated capacity 372.736kWh
Rated charge and discharge power 186kW
Rated charge and discharge current 140A
Maximum continuous charging and discharging current 280A
Charge and discharge efficiency ≥95%
Battery cluster internal resistance ≤20mΩ
Cycle life ≥6000cycles(0.5,25ºC80%EOL90%DOD)
Operating Temperature Charge:0-55ºCdischarging:-20~55ºC
Recommended storage temperature 15~35ºC
Relative humidity 0~90%RH
Maximum allowable altitude 4000m(over 2000 m,it will operate in derating)
Self power consumption/month ≤3%
Cooling method Liquid cooling
Manufacturing process Laser welding
Communication mode CAN/RS485/dry contact
Dimensions(WXDXH) 1300±5mm1300±5mm*2300±5mm


Main Applications :

Widely used in various energy storage scenarios such as new energy consumption, peak shaving and valley filling, emergency power reserve, and dynamic capacity expansion
