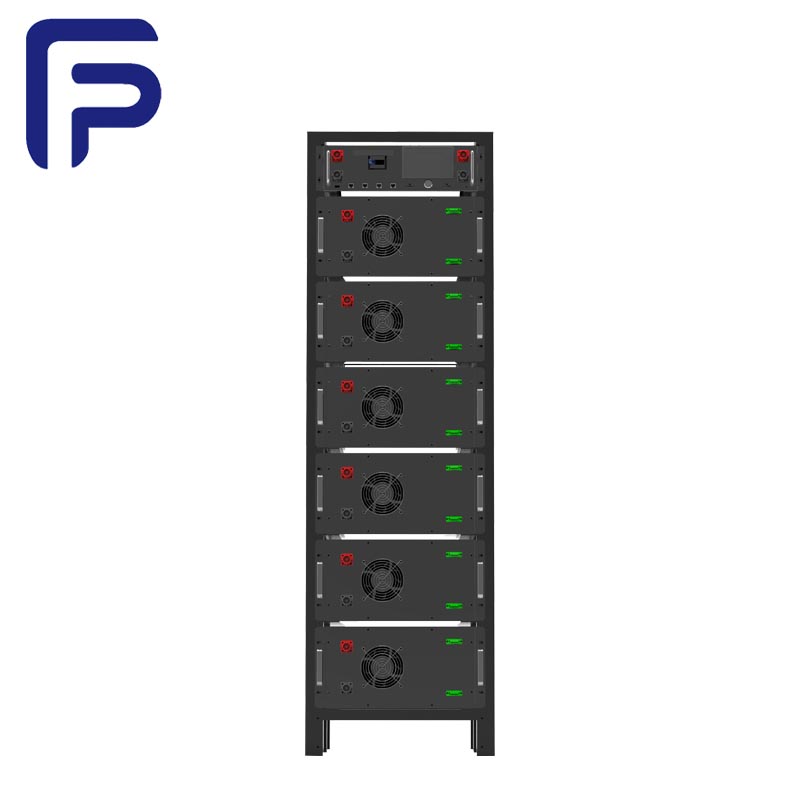

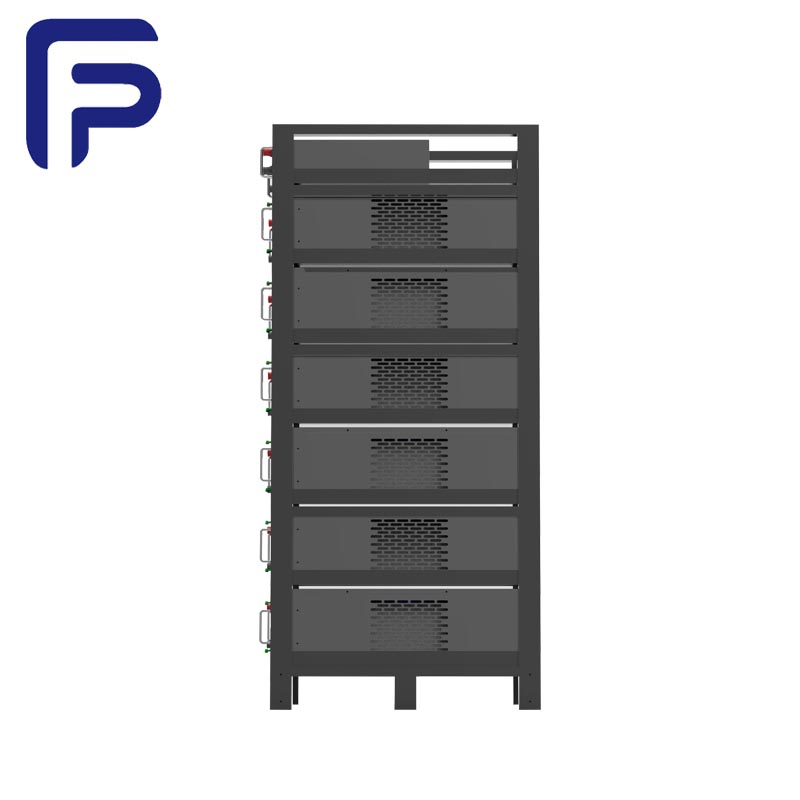

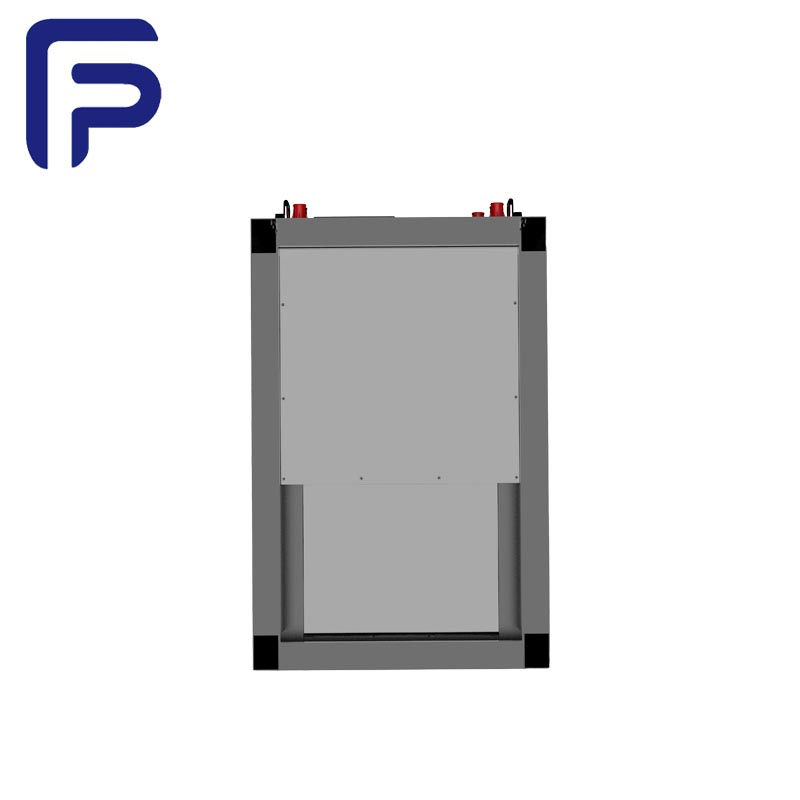

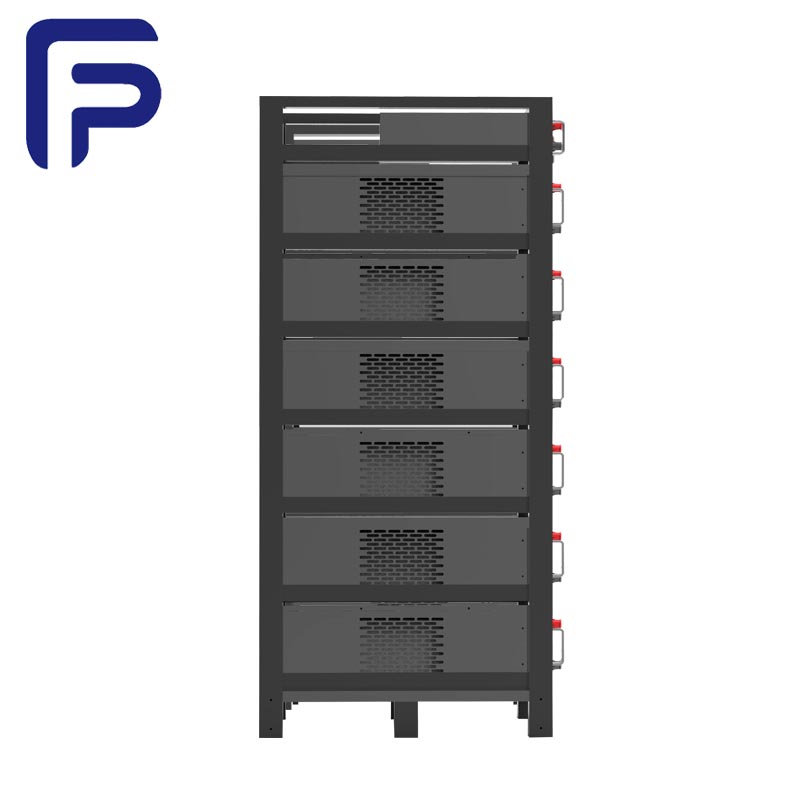

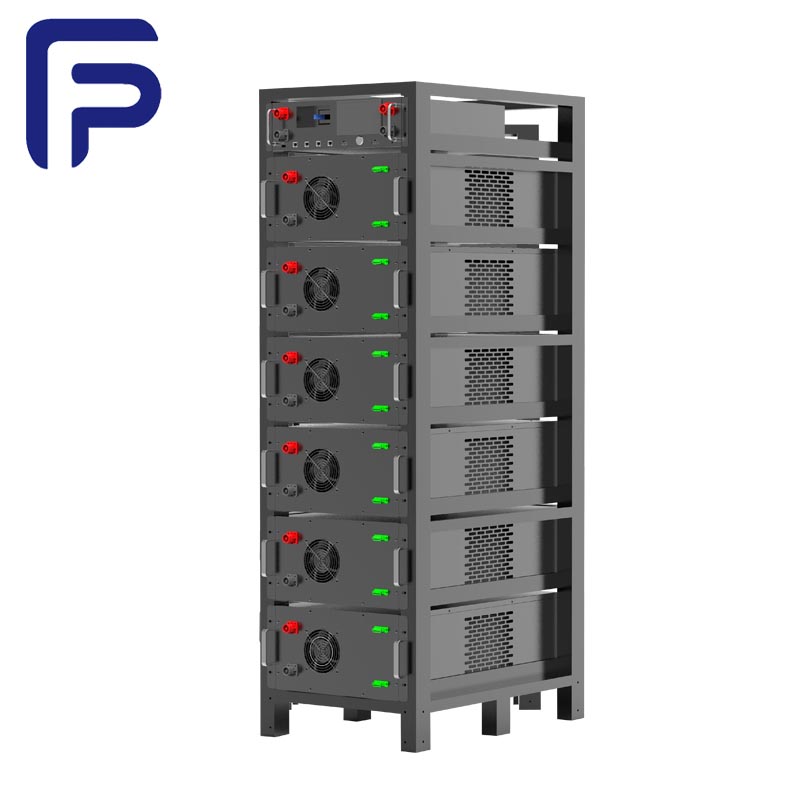

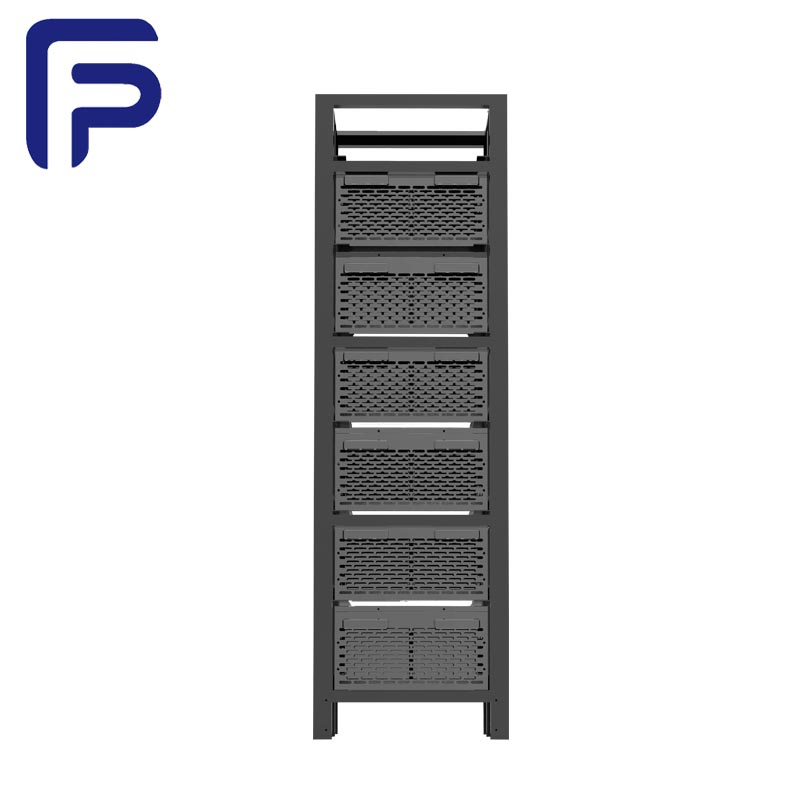

l FP-ESS-25kW64kwh
FUNPACK
NLP LifePO4 battery is superior compared to lead acid batteries in following features
1.0 Degree charging cut off, designed with full protection.
2.1/2 Lower weight, high energy density.
3.1 Hour Fast Charging
4.Longer life, up to 4000 cycles.
5. 5 Years quality warranty.
6. 100% Power discharge without harm battery
Model | FP-ESS-25kW64kwh | FP-ESS-30kW80kwh | FP-ESS-30kW96kwh |
DC（Battery） | |||
Cells Type | LiFe PO4 Lithium Iron Phosphate | ||
Cell specfication | 3.2V314Ah | 3.2V314Ah | 3.2V314Ah |
Configuration of Battery | 64S1P | 80S1P | 96S1P |
Battery Capacity | 64.307kWh | 80.384kWh | 96.4608kWh |
Max. Power | 25KW | 30KW | 30KW |
Max. Current | 150A | 150A | 150A |
Battery Rated Voltage | 204.8V | 256V | 307.2V |
Battery Voltage Range | 160V-233.6V | 200V-292V | 240V-350.4V |
AC side (grid-connected) | |||
Rated Power(kVA) | 25KVA | 30KVA | 30KVA |
Rated current(A) | 43.5A | 43.5A | 43.5A |
Rated Voltage(V) | 400V/230V | 400V/230V | 400V/230V |
Power Grid Voltage Range | -20%~15% | -20%~15% | -20%~15% |
Rated Frequency | 50/60Hz | ||
Range of Frequency | 47-52/57-62Hz | ||
THDI | <3%(>30%load） | ||
Power factor | -1~1 | ||
Solar Side（PV） | Optional | ||
Max. Power | 19.2+19.2KW | 19.2+19.2KW | 19.2+19.2KW |
Max.PV Voltage | 800V | 800V | 800V |
PV starting voltage | 250V | 250V | 250V |
MPPT voltage range | 200-800V | 200-800V | 200-800V |
MaxPV Current | 25A+25A | 30A+30A | 30A+30A |
AC side (off-grid) | |||
Rated Output Powe | 25KVA | 30KVA | 30KVA |
Max. Output Power | 27.5KVA | 33KVA | 33KVA |
Rated output current | 36.2A | 43.5A | 43.5A |
Max. output current | 40A | 48A | 48A |
Rated Voltage(V) | 400V/230V | 400V/230V | 400V/230V |
Output Voltage Harmonics | <3%(Resistive load) | ||
Systemoperationstrategy | |||
Functional | Anti Backflow and Black Start | ||
Scienerios | Photovaltaic and diesel storage project, Wind power and diesel storage project, Wind and photovoltaic diesel storage project, Charging Station + Energy storage project, On-grid electricity selling project | ||
Specificaiton | |||
Cabinet Size ( W * D * H ) | 812*532*1775mm | 812*532*1775mm | 812*532*1925mm |
Weight | ~530kg | ~640KG | ~760KG |
Max. cycle efficiency | >90% | ||
Protection | IP554 | ||
Auxiliary Power Supply | Self-powered, Externally powered | ||
Corrosion resistance rating | C3/C5 | ||
Operating Humidity Range | 0%-100%(Non-condensing) | ||
Operating Temperature Range | -30 ° C-50 ° C(>45 ° Cderating) | ||
Max. Operation Altitude | <3000m | ||
Battery cabinet cooling method | Intelligent Air Cooling | ||
Fire safety configuration | Smoke detector, Heat detector, Gas-based fire extinguishing system, Pressure relief valve, Pack-level fire protection, Cluster-level fire protection, Automoatic pressure relief | ||
Communication | Ethernet、485、CAN | ||
Output Voltage Harmonics | <3%(Resistive load) | Output Voltage Harmonics | <3%(Resistive load) |
Authentication | Battery pack(UN38.3) Battery cell(UL、CE、UN38.3） Hybrid Inverter（EC、IEC62019、IEC62477、IEC61000、EN50549 | ||
Power Grid Support | LVRT、HVRT、VSG | ||
