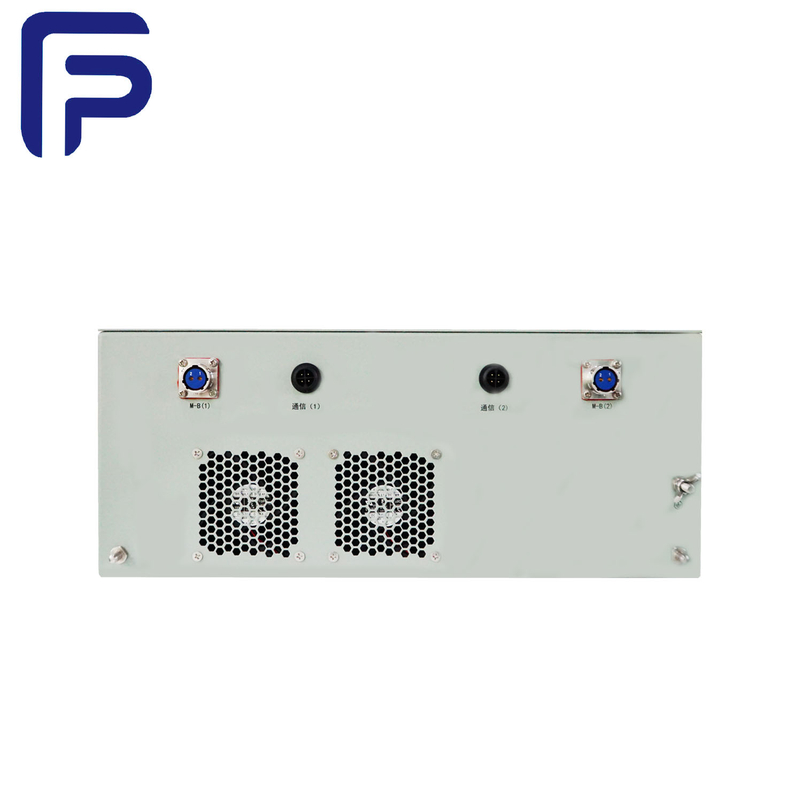

Rack Mount Rechargeable LiFePO4 Battery 76.8V 40ah Li Ion Battery Module for Home

attery type: LiFePO4
Battery power 3072Wh
Battery capacity: 40AH
Rated voltage of battery: 76.8V
Battery operating voltage range: 60~87.6V
Maximum charging current: 20A
Maximum discharge current: 40A
DOD: 100%
Number of parallel connections: /
cycle life: 2000 cycles
working voltage: Charge:0~ 60C Discharge: -20 ~60C
Working humidity: 5% ~95%
Normal working altitude: 3000m
Waterproof grade: IP23
Installation metho:d Cabinet
Net weight:25kg
Size (L * W * H): 482.6*449*177mm

Availability:
Quantity:
  • FP-76.8V 40ah

  • FUNPACK

Product Description

Product Description Of Rack Mount Rechargeable LiFePO4 Battery

Do not install or use this product in environments with temperatures below -10 ° C or above 50 ° C. This product can be installed at a maximum altitude of 2000m. Using the RS485 interface, you can view packaging information. The default Baud is 9600bps. If communication with the monitoring device is required through RS485, the monitoring device acts as the host and polls data based on the address.

Product Basic Information Of Rack Mount Rechargeable LiFePO4 Battery

Technical Parameters
Battery type LiFePO4
Battery power 3072Wh
Battery capacity 40AH
Rated voltage of battery 76.8V
Battery operating voltage range 60~87.6V
Maximum charging current 20A
Maximum discharge current 40A
DOD 100%
Number of parallel connections /
cycle life 2000 cycles
working voltage Charge:0~ 60C Discharge: -20 ~60C
Working humidity 5% ~95%
Normal working altitude 3000m
Waterproof grade IP23
Installation method Cabinet
Net weight 25kg
Size (L * W * H) 482.6*449*177mm

Main Applications Of Rack Mount Rechargeable LiFePO4 Battery:


This product is mainly used for energy storage equipment, and customers also can customize it.
