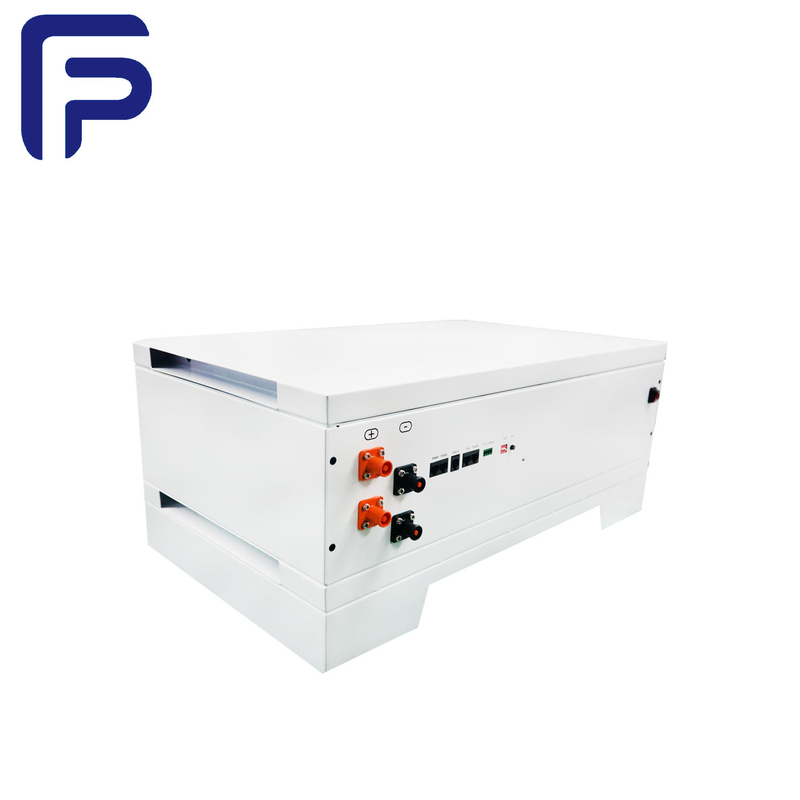

Rechargeable 48V150AH 7200WH White Rack LiFePO4 Energy Storage Battery

Battery model: LFP 48V150AH-15S5P
Battery type: Phosphoric acid rechargeable battery
Battery energy: 7200Wh
Indicative capacity: 150AH
Indicating voltage: 48V
Operating voltage range: 37.5~54.75V
Maximum charging current: 100A
Maximum discharge current: 100A
Accurate charging current: 75A
Quasi discharge current: 75A
Discharge depth: 100% (0.2C)
Number of parallel connections: 15
cycle life: 3000cycles
Operating temperature range: Charging: -20~70 ℃ discharge -20~70 ℃
Environmental humidity: 5-95%
altitude: <3000m
Waterproof grade: IP54
Installation method: Stacking
communication: RS485, RS232, CAN
Cerifica tion : 65kg
Dimensions (length/width/height): 660L * 410W * 198H (mm)


Availability:
Quantity:
  • LFP 48V150AH-15S5P

  • FUNPACK

Product Description

Product Description Of 48V150AH 7200WH White Rack LiFePO4 Energy Storage Battery

Do not install this product below -20 ° C and above 70 ° C for use. This product is installed below an altitude of 3000 meters

Product Basic Information Of 48V150AH 7200WH White Rack LiFePO4 Energy Storage Battery

technical parameter
Battery model LFP 48V150AH-15S5P
Battery type Phosphoric acid rechargeable battery
Battery energy 7200Wh
Indicative capacity 150AH
Indicating voltage 48V
Operating voltage range 37.5~54.75V
Maximum charging current 100A
Maximum discharge current 100A
Accurate charging current 75A
Quasi discharge current 75A
Discharge depth 100% (0.2C)
Number of parallel connections 15
cycle life 3000cycles
Operating temperature range Charging: -20~70 ºC discharge -20~70 ºC
Environmental humidity 5-95%
altitude <3000m
Waterproof grade IP54
Installation method Stacking
communication RS485, RS232, CAN
weight 65kg
Dimensions (length/width/height) 660L * 410W * 198H (mm)

Main Applications Of 48V150AH 7200WH White Rack LiFePO4 Energy Storage Battery:


This product is mainly used for energy storage equipment, and customers also can customize it.
