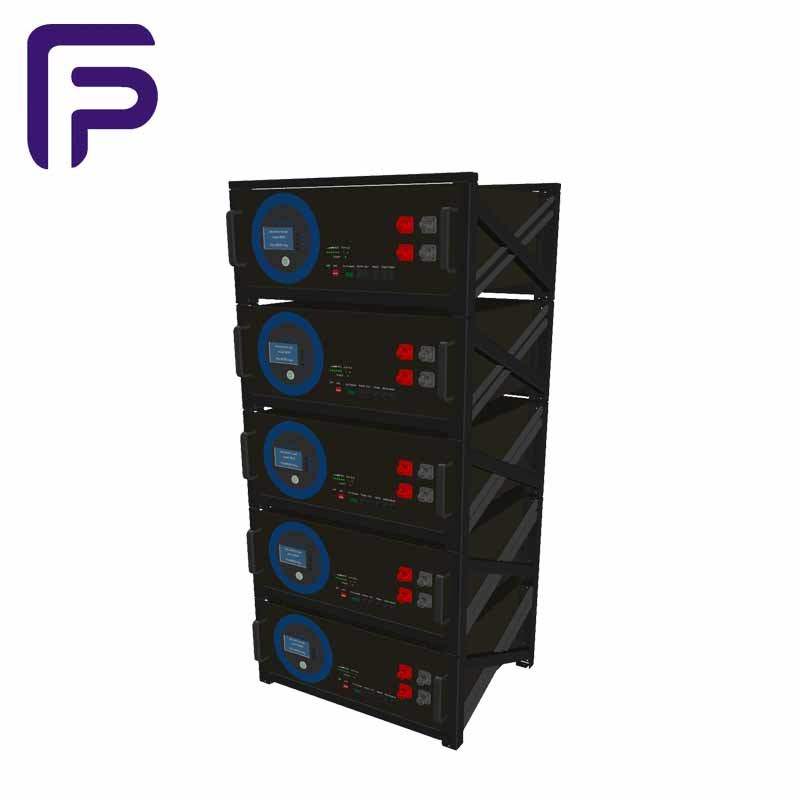

FH-LP05-4U
FUNPACK
LifePO4 batteries and its benefits:
NLP LifePO4 battery is superior compared to lead acid batteries in following features
1.0 Degree charging cut off, designed with full protection.
2.1/2 Lower weight, high energy density.
3.1 Hour Fast Charging
4.Longer life, up to 4000 cycles.
5. 5 Years quality warranty.
6. 100% Power discharge without harm battery
Technical Parameters | |||||
Model | FP05-4U | FP05-4U | FP05-4U | FP05-4U | FP05-4U |
Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
Energy | 6.912KWh | 13.824KWh | 20.736KWh | 27.648KWh | 34.56KWh |
Capacity | 100AH | 200AH | 300AH | 400AH | 500AH |
Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
Working Voltage Range | 40~58.4V | 40~58.4V | 40~58.4V | 40~58.4V | 40~58.4V |
Max charge current | 100A | 100A | 100A | 100A | 100A |
Max discharge current | 100A | 100A | 100A | 100A | 100A |
Standard charging current | 100A | 100A | 100A | 100A | 100A |
Standard discharge current | 100A | 100A | 100A | 100A | 100A |
DOD | 100% | 100% | 100% | 100% | 100% |
Max string parallel number | 15 | 15 | 15 | 15 | 15 |
Lifecycle | 6000 times | 6000 times | 6000 times | 6000 times | 6000 times |
Operating Temperature | Charge:0~60ºCDischarge:-10~60ºC | ||||
Operation Humidity | 5~95% | 5~95% | 5~95% | 5~95% | 5~95% |
Nominal Operation Altitude | <3000m | <3000m | <3000m | <3000m | <3000m |
IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
Warranty period | 5 | 5 | 5 | 5 | 5 |
Communication | MSDS UN383 | MSDS UN383 | MSDS UN383 | MSDS UN383 | MSDS UN383 |
Certification | / | / | / | / | / |
Net weight | ≈50KG | ≈50KG | ≈50KG | ≈50KG | ≈50KG |
Dimension(L*W*H) | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm |
Rack size(L*W*H) | 519*409*1087mm | 574*482.6*177mm*2 | 574*482.6*177mm*3 | 574*482.6*177mm*4 | 574*482.6*177mm*5 |
FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
