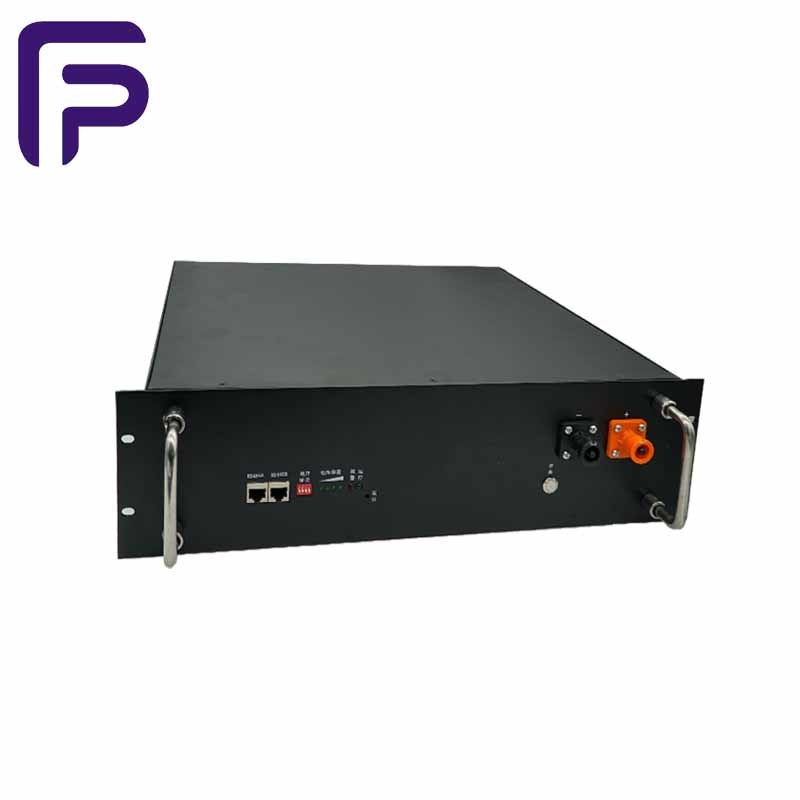

51.2V 50ah Rack LiFePO4 Battery Module, 3u Energy Storage

internal Impedance: ≤10.0mΩ(Ac. 1kHz)
Operating temperature :Charging 0 ~ 45ºC;Discharging -40 ~ 55ºC
Maximum Charging Voltage: 58.4V
Discharge Termination Voltage :40V(T≥-20ºC),32.0V(T<-20ºC)
Maximum Continuous Charging Current: 50A
Maximum Continuous Discharge Current: 100A
Dimension: ≤480*350*130mm
Availability:
Quantity:
  • L71005

  • FUNPACK

Product Description

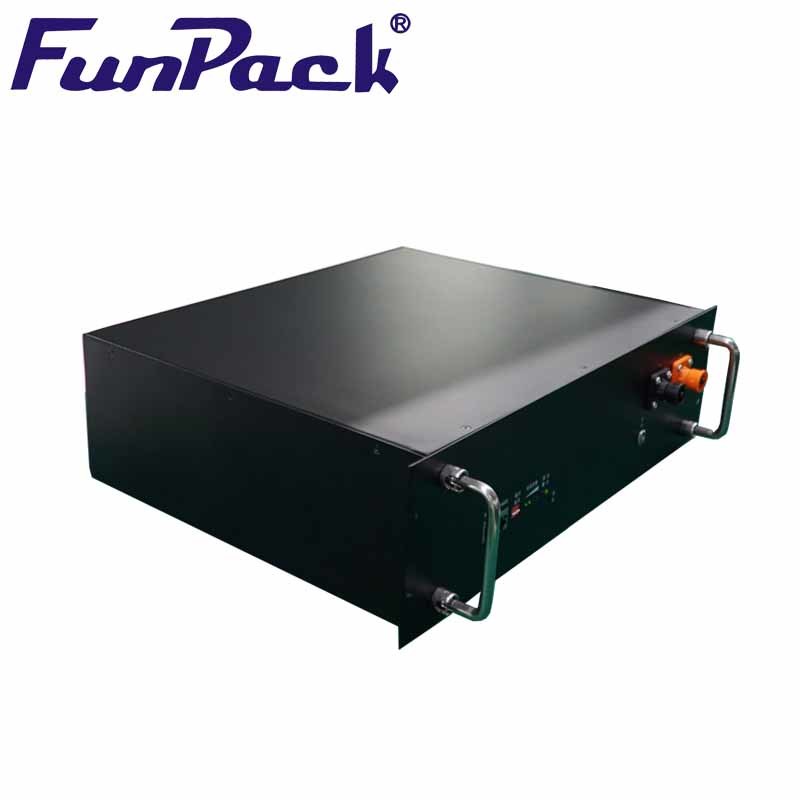

DONGGUAN-FUNPACK-ELEC-CO-LTD- (3)DONGGUAN-FUNPACK-ELEC-CO-LTD- (5)

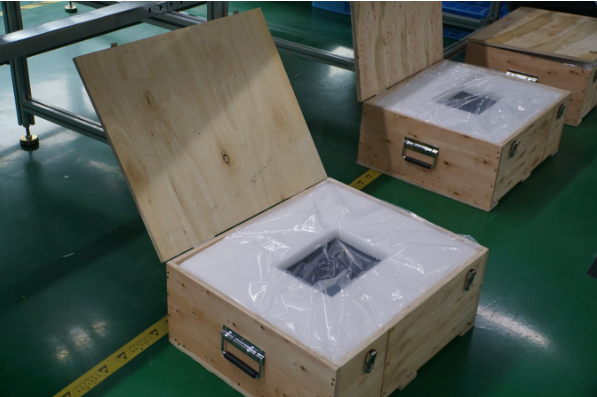

DONGGUAN-FUNPACK-ELEC-CO-LTD- (6)DONGGUAN-FUNPACK-ELEC-CO-LTD- (7)22


Product Description

51.2V 50AH Rack Lifepo4 Battery Module For Energy Storage Equipment

Product Description Of 51.2V 50AH Rack Lifepo4 Battery Module:

Work indicator: Green, lit in normal state

Fault indicator: Red, lit in case of overtemperature, overvoltage, undervoltage and overload

Capacity display: 4 LED display, 25%, 50%, 75%, 100%

The Li-ion battery pack should be stored in a cool, dry and well-ventilated area, and should be far from the fire and the high temperature

Product Basic Information Of 51.2V 50AH Rack Lifepo4 Battery Module:

Item Specification
internal Impedance
≤10.0mΩ(Ac. 1kHz)
Operating temperature Charging 0 ~ 45ºC;
Discharging -40 ~ 55ºC
Maximum Charging Voltage
58.4V
Discharge Termination Voltage
40V(T≥-20ºC),32.0V(T<-20ºC)
Maximum Continuous Charging Current
50A
Maximum Continuous Discharge Current
100A
Dimension ≤480*350*130mm

Main Applications Of 51.2V 50AH Rack Lifepo4 Battery Module :

This product is mainly used for energy storage equipment, and customers also can customize it.
