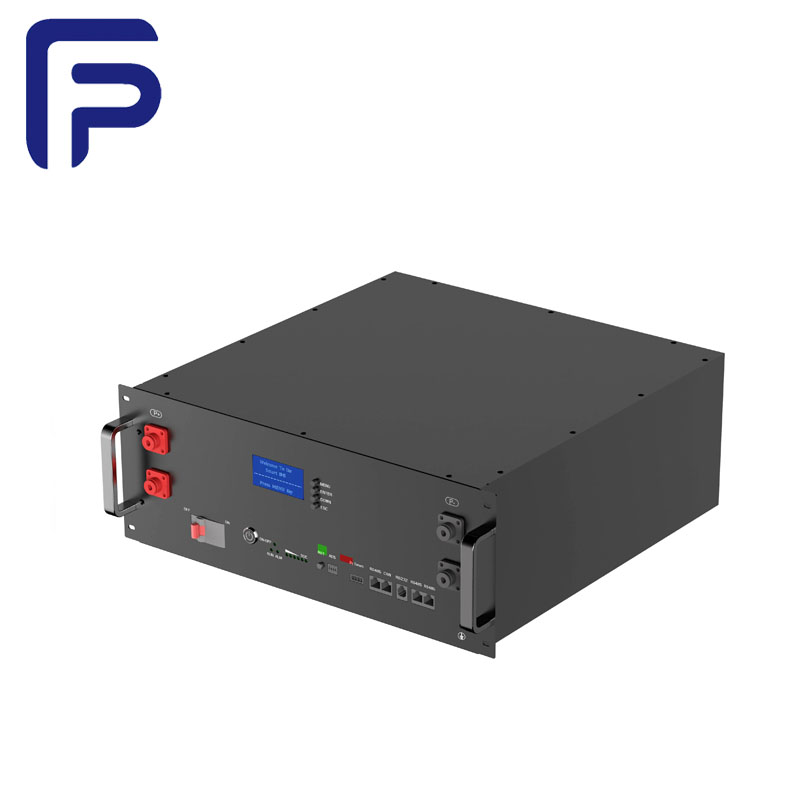

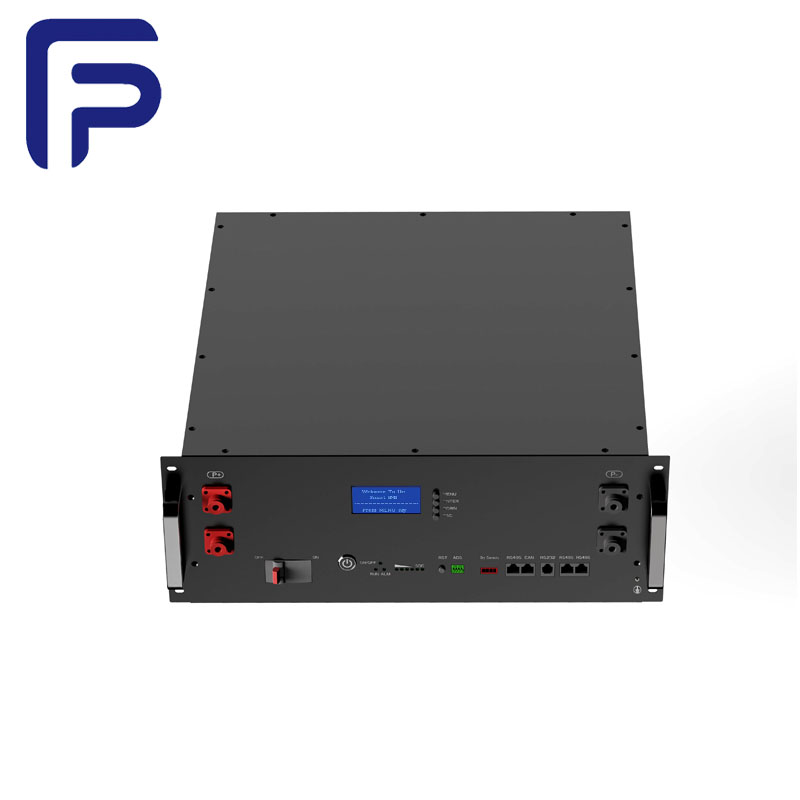

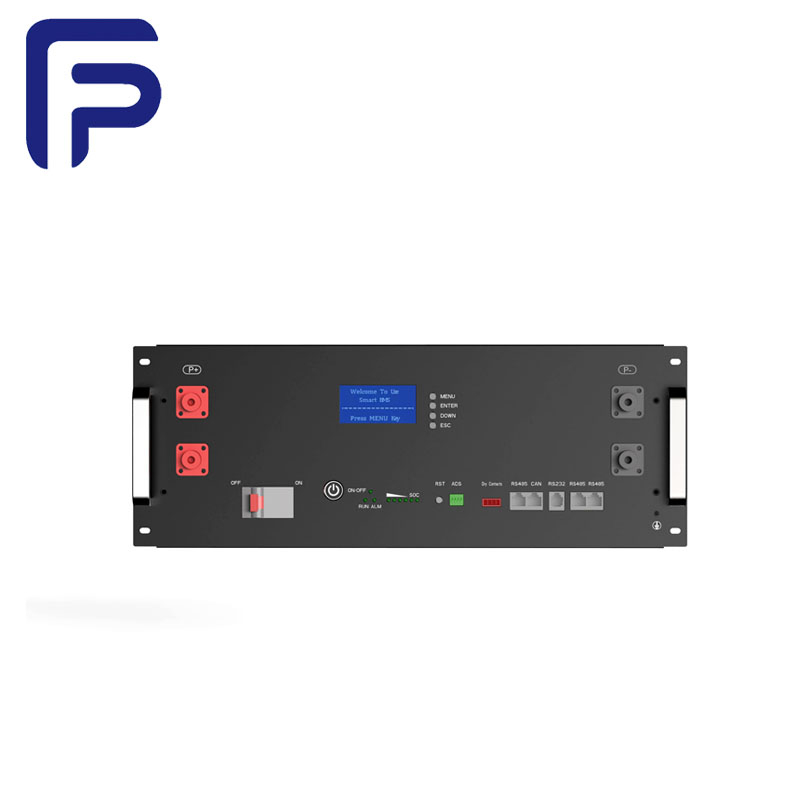

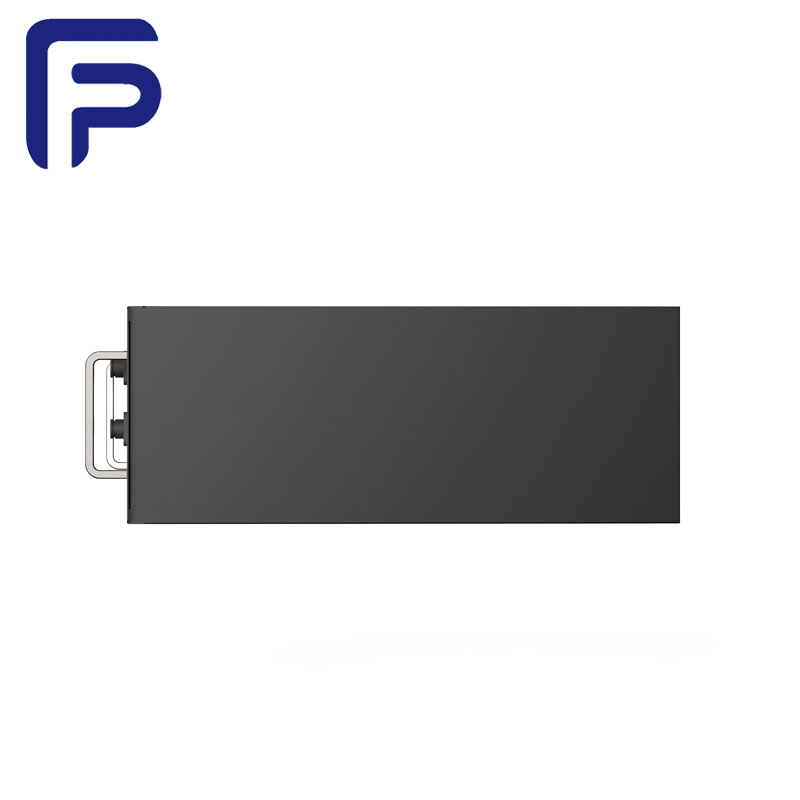

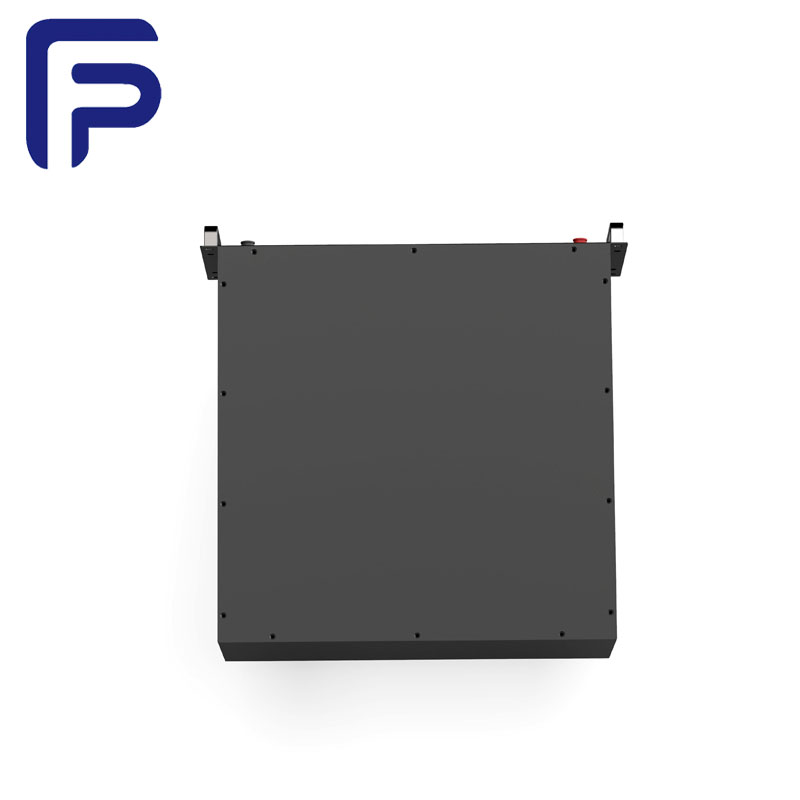

FP-R1-24V200-3U
FUNPACK
NLP LifePO4 battery is superior compared to lead acid batteries in following features
1.0 Degree charging cut off, designed with full protection.
2.1/2 Lower weight, high energy density.
3.1 Hour Fast Charging
4.Longer life, up to 4000 cycles.
5. 5 Years quality warranty.
6. 100% Power discharge without harm battery
MODEL | FP-R1-24V200-3U | FP-R1-48V100-3U | FP-R1-51.2V100-3U |
Rate valtage(Vdc) | 25.6 | 48 | 51.2 |
Cell combination | 8S2P | 15S1P | 16S1P |
Rate capacity(AH) | 200 | 100 | 100 |
Energy storage(KWH) | 5.12 | 4.8 | 5.12 |
Cycle life | 25±2°C，0.5C/0.5C，EOL70%≥6000 | ||
Charge/Discharge Standard | |||
Charge voltage(V) | 28.8/29 | 54/54.4 | 57.6/58 |
Max.charge current(A) | 200 | 100 | 100 |
Max.discharge current(A) | 200 | 100 | 100 |
Discharge cut-off voltage(VDC) | ≤22V | ≤41V | ≤44V |
Charge cut-off voltage(VDC) | 28.8/29V | 54/54.4V | 57.6/58V |
Enviornment | |||
Charge temperature | 0°C ~ 50°C@60 ± 25% Relative Humidity | ||
Discharge temperature | -20°C ~ 50°C@60 ± 25% Relative Humidity | ||
Storage temperature | -20°C ~ 50°C@60 ± 25% Relative Humidity | ||
Mechanical | |||
IP class | IP20 | IP20 | IP20 |
Material system | LiFePO4 | LiFePO4 | LiFePO4 |
Case material | Metal | Metal | Metal |
Maximum number of support series and parallel | 15 | 15 15 | 15 |
Warranty | 5years | 5years | 5years |
Product dimension L*W*H(mm) | 480*442*133 (3U) | 480*442*133 (3U) | 480*442*133 (3U) |
Package dimension L*W*H(mm) | 580*530*210 | 580*530*210 | 580*530*210 |
Net weight(kg) | 44 | 42 | 44 |
Gross weight(kg) | 49 | 47 | 49 |
Communication | |||
Protocol(Optional) | CAN /485/R232 | ||
Certificates | |||
Pack | UN38.3, MSDS, | ||
Cell | UN38.3, MSDS, IEC62619, CE, UL1973 | ||
FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
