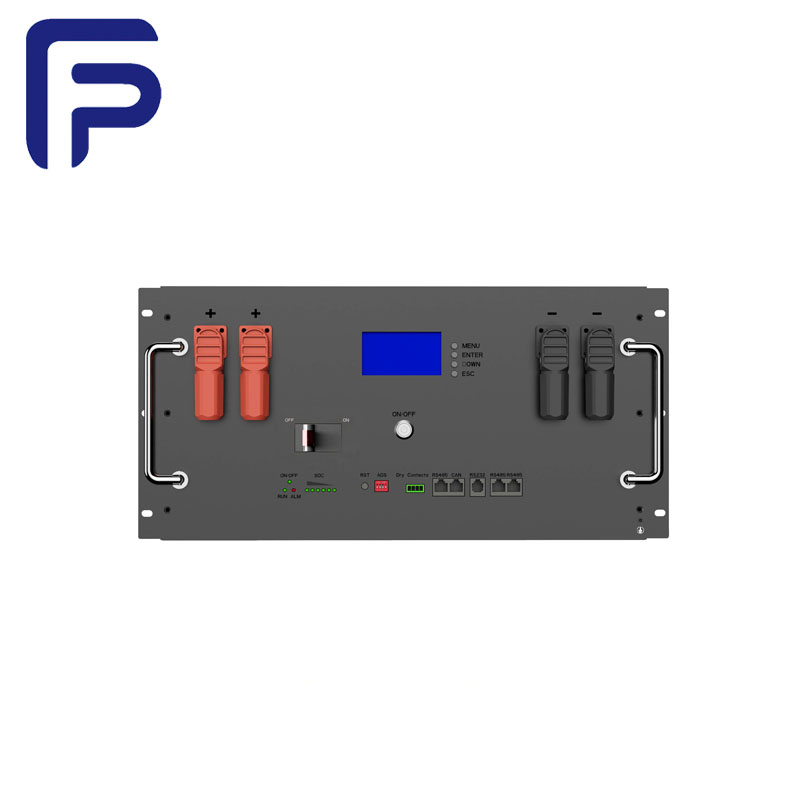

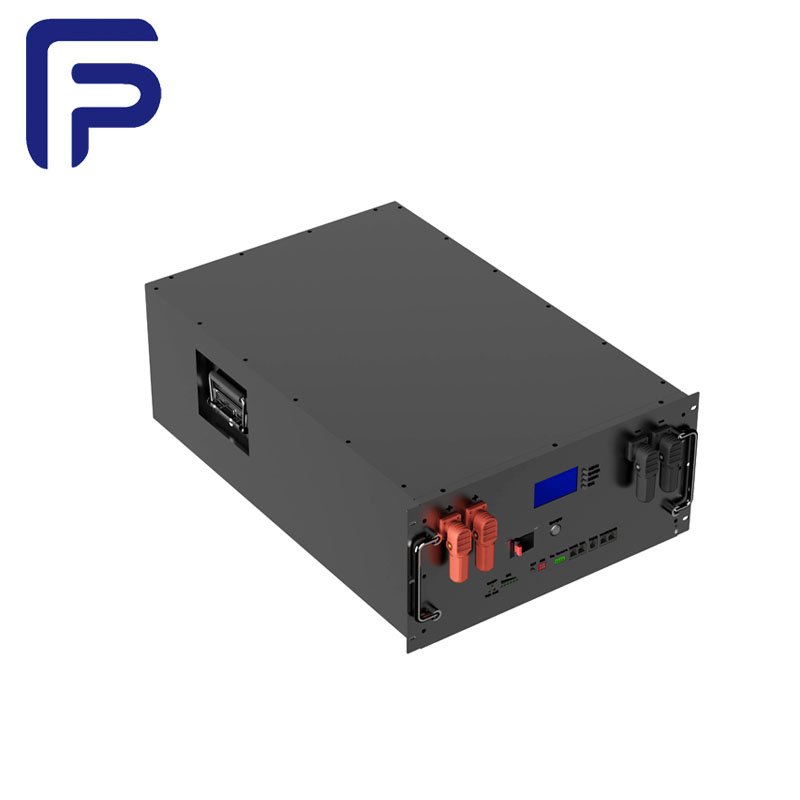

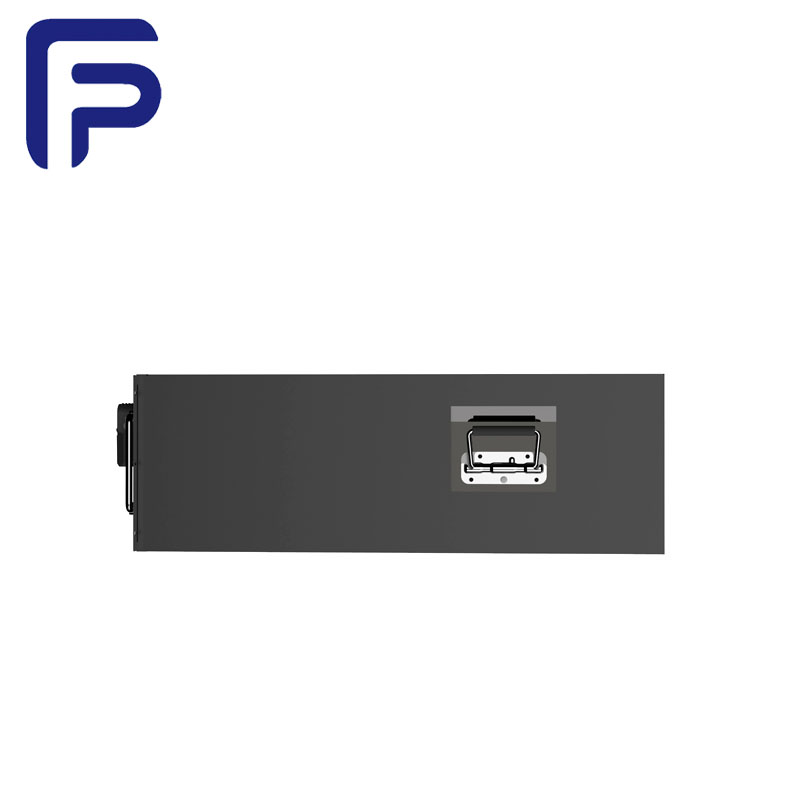

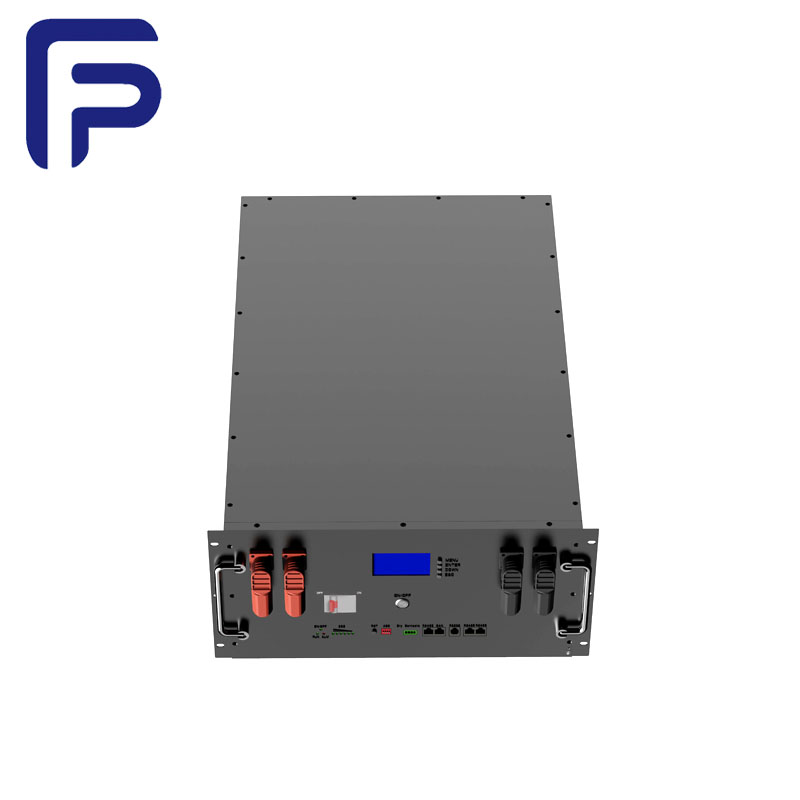

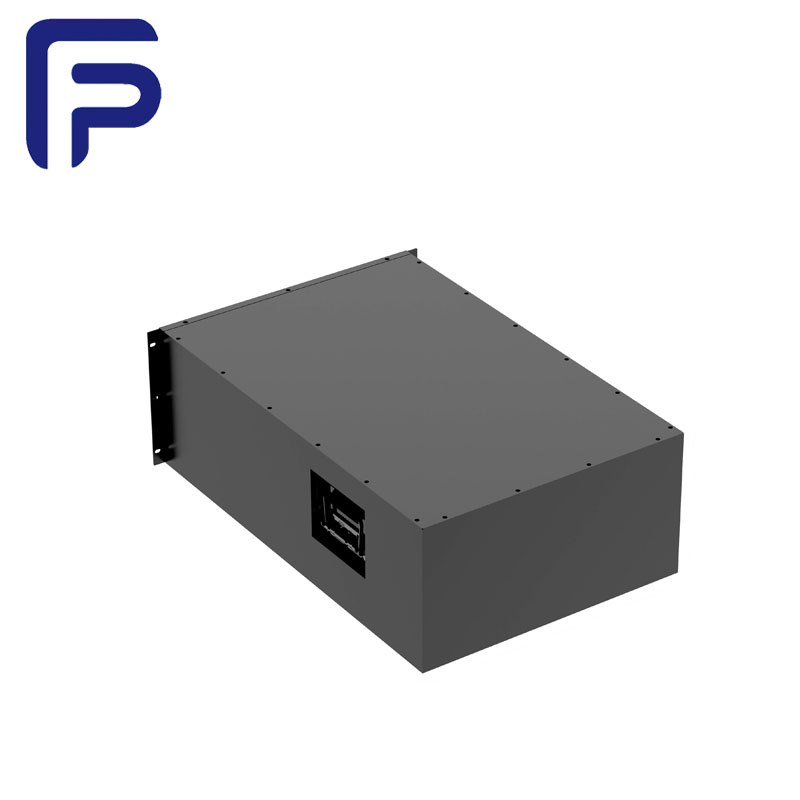

51.2V280ah 314ahRack Low Temperature LiFePO4 Battery Module, 3u Energy Storage Device

MODEL FP-R1-51.2V280-5U FP-R1-51.2V314-5U
FP-R2-51.2V280-5U FP-R2-51.2V314-5U
Rate valtage(Vdc) 51.2 51.2
Cell combination 16S1P 16S1P
Rate capacity(AH) 280 314
Energy storage(KWH) 14.366 16.077
Cycle life 25±2°C，0.5C/0.5C，EOL70%≥8000-10000
Charge/Discharge Standard
Charge voltage(V) 56 56
Max.charge current(A) 200 200
Max.discharge current(A) 200 200
Discharge cut-off voltage(VDC) 43.2 43.2
Charge cut-off voltage(VDC) 58.4 58.4
Enviornment
Charge temperature 0°C ~ 50°C@60 ± 25% Relative Humidity
Discharge temperature -20°C ~ 50°C@60 ± 25% Relative Humidity
Storage temperature -20°C ~ 50°C@60 ± 25% Relative Humidity
Mechanical
IP class IP20 IP20
Material system LiFePO4 LiFePO4
Case material Metal Metal
Maximum number of support series and parallel 15 15 15
Warranty 5years 5years
Product dimension L*W*H(mm) 780*430*230 (5U) 780*430*230 (5U)
Package dimension L*W*H(mm) 890*720*430 890*720*430
Net weight(kg) 116 127
Gross weight(kg) 137 148
Communication
Protocol(Optional) CAN /485/R232
Certiﬁcates
Pack UN38.3, MSDS,
Cell UN38.3, MSDS, IEC62619, CE, UL1973

Availability:

Quantity:



Inquire Add to Basket

Model:
Lifepo4 Battery Pack
Brand:
FUNPACK

Product Description

51.2V 50AH Rack Lifepo4 Battery Module For Energy Storage Equipment

Product Description Of 51.2V 50AH Rack Lifepo4 Battery Module:

Work indicator: Green, lit in normal state

Fault indicator: Red, lit in case of overtemperature, overvoltage, undervoltage and overload

Capacity display: 4 LED display, 25%, 50%, 75%, 100%

The Li-ion battery pack should be stored in a cool, dry and well-ventilated area, and should be far from the fire and the high temperature

Product Basic Information Of 51.2V 280AH Rack Lifepo4 Battery Module:

MODEL	FP-R1-51.2V280-5U	FP-R1-51.2V314-5U
MODEL	FP-R2-51.2V280-5U	FP-R2-51.2V314-5U
Rate valtage(Vdc)	51.2	51.2
Cell combination	16S1P	16S1P
Rate capacity(AH)	280	314
Energy storage(KWH)	14.366	16.077
Cycle life	25±2°C，0.5C/0.5C，EOL70%≥8000-10000
Charge/Discharge Standard
Charge voltage(V)	56	56
Max.charge current(A)	200	200
Max.discharge current(A)	200	200
Discharge cut-off voltage(VDC)	43.2	43.2
Charge cut-off voltage(VDC)	58.4	58.4
Enviornment
Charge temperature	0°C ~ 50°C@60 ± 25% Relative Humidity
Discharge temperature	-20°C ~ 50°C@60 ± 25% Relative Humidity
Storage temperature	-20°C ~ 50°C@60 ± 25% Relative Humidity
Mechanical
IP class	IP20	IP20
Material system	LiFePO4	LiFePO4
Case material	Metal	Metal
Maximum number of support series and parallel	15	15 15
Warranty	5years	5years
Product dimension LWH(mm)	780430230 (5U)	780430230 (5U)
Package dimension LWH(mm)	890720430	890720430
Net weight(kg)	116	127
Gross weight(kg)	137	148
Communication
Protocol(Optional)	CAN /485/R232
Certiﬁcates
Pack	UN38.3, MSDS,
Cell	UN38.3, MSDS, IEC62619, CE, UL1973

Main Applications Of 51.2V 280AH Rack Lifepo4 Battery Module :

This product is mainly used for energy storage equipment, and customers also can customize it.

FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.

Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A: Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
